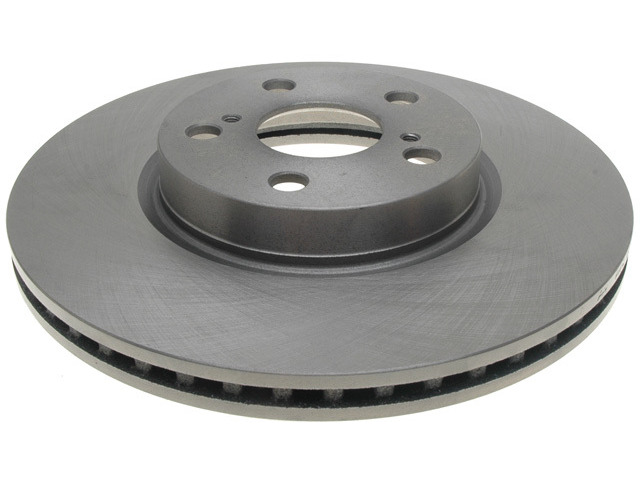

Get smooth, dependable stops with the Raybestos R-Line Brake Rotor, part number 980629R. This front vented rotor was developed from OE samples and is built for everyday driving conditions. It is listed for several models, among them the 2009-2019 Toyota Corolla, 2009-2014 Toyota Matrix and 2009-2010 Pontiac Vibe, all engines. See the "Vehicles it fits" section for the full list.
- OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE standard: Meets the SAE standard for tensile strength, supporting the rotor's structural integrity.
- Low initial lateral runout and thickness variation: Held to small runout and thickness-variation parameters. This is designed to help reduce pedal pulsation and brake noise and to extend pad life.
- Mill balanced edges: Mill balanced and 100 percent validated to help minimize thickness variation, for less vibration and smoother stopping.
This disc brake rotor is full cast from cast iron in a conventional, non-drum-in-hat design. It has a smooth, non-directional braking surface and a rust-resistant coating. Outside diameter is 10.8 in (275 mm), nominal thickness is 0.9 in (22.1 mm) and discard thickness is 0.8 in (19.1 mm). Overall height is 1.8 in (46.6 mm) and the center hole is 2.2 in (55 mm). It has 5 lug holes on a 3.4 in (86.1 mm) bolt circle. The ABS tone ring and bearings are not included. Country of origin: China.
The listed applications use two of these rotors. It is sold individually, so this listing is for one. Replacing both sides together as a matched pair is recommended for even, balanced braking. Signs a rotor may need replacing include pedal pulsation, grinding or squealing, visible scoring and wear down to the discard thickness.
Frequently Asked Questions
Is this one of the Toyota Corolla rotors for 2009-2019 models?
Yes. Raybestos 980629R is listed as a front rotor for the 2009-2019 Toyota Corolla with all engines. Check the "Vehicles it fits" section to confirm your vehicle.
What other vehicles is this rotor listed for?
Besides the Corolla, it is listed for the 2009-2014 Toyota Matrix and the 2009-2010 Pontiac Vibe, all engines. The "Vehicles it fits" section has the full application list.
What does a brake rotor do?
It is the spinning disc the brake pads clamp against, and the friction slows the wheel. This one is a vented, cast iron rotor for the front axle.
What are the thickness specs for this rotor?
Nominal thickness is 0.9 in (22.1 mm) and discard thickness is 0.8 in (19.1 mm). A rotor that has worn to its discard thickness should be replaced.
Do I need to buy one rotor or two?
It is sold individually, and the listed applications use two. Replacing both sides together as a matched pair is recommended for even, balanced braking.
