Right Engine Piston for 2001-2005 Chevrolet Silverado 2500 HD & More - Sealed Power 2782PNR

$213.99

Sealed Power Engine Piston 2782PNR - view 2

Part number: 2782PNR

UPC: 019826223050

Condition: New

Weight: 3.00 LBS

Sold as: one piston per listing; 4 of this part per engine

$213.99

Current Stock: 592

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Sealed Power Engine Piston P/N:2782PNR

$213.99

Description

Sealed Power 2782PNR engine piston for the 2001-2005 Chevrolet Silverado 2500 HD V8 6.6L and other vehicles is a standard-size right-bank piston for the 6.6L V8 diesel. Like other Sealed Power pistons, it is an application-specific component.

Right-bank piston sold one per listing; the engine takes four of these and four left-bank 2782PNL pistons
Cast from hypereutectic aluminum and machined for consistent quality
Iron ring insert in the top ring groove accepts a keystone-style top ring
Bowl piston head for a 103.00 mm cylinder bore

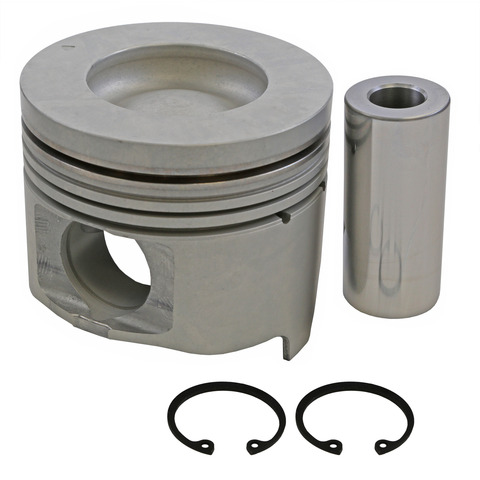

Supplied with its pin and two clips

Quick facts

Part: Sealed Power 2782PNR engine piston
Fits: 2001-2005 Chevrolet Silverado 2500 HD V8 6.6L and other vehicles
Position: Right bank
Material: Cast aluminum
Condition: New

A worn piston can show up as engine knock, rising oil use or lost compression. Those signs alone do not prove a piston is at fault, since worn piston rings can look much the same.

Fits

This right-bank piston also suits the 2001-2005 Chevrolet Silverado 3500 V8 6.6L and the 2001-2005 GMC Sierra 2500 HD V8 6.6L.

Specifications

Fit and size

Position: right bank
Quantity: one piston per listing; 4 of this part per engine
Size: standard, not oversized
Cylinder bore diameter: 103.00 mm
Piston pin outside diameter: 34.50 mm
Compression height: 49.80 mm
Ring thickness: top compression 3.00 mm, second compression 2.00 mm, oil 3.00 mm

Build and materials

Material: cast aluminum
Piston head type: bowl
Top ring groove: iron ring insert for a keystone-style top ring
Condition: new
Country of origin: United States

In the box

One piston with its pin and two clips; the engine takes four of these and four 2782PNL. Assembly lubricant is not included.

Interchange: S224-3452
2243451 · 97303756

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

2243451, 97303756, S224-3452

Buyer's Q&A

Frequently Asked Questions

Does Sealed Power 2782PNR fit the 2001-2005 Chevrolet Silverado 2500 HD V8 6.6L?

Yes. Sealed Power 2782PNR is the right-bank piston for that truck's V8 6.6L. If your vehicle is not named here, look it up in the "Vehicles it fits" section and match it to your engine.

Do Sealed Power cast pistons like the 2782PNR come as a full set?

No. Sealed Power 2782PNR is one right-bank piston. The engine takes eight: four of these and four left-bank 2782PNL pistons, so order four of each.

Is the 2782PNR one of the Sealed Power hypereutectic pistons?

Yes. Sealed Power 2782PNR is cast from hypereutectic aluminum and machined for consistent quality; the catalog lists its material as cast aluminum.

Does the 2782PNR piston come with the pin and clips?

Yes. This piston comes with its pin and two clips. Assembly lubricant is not included.

What top ring does the diesel 2782PNR piston accept?

The top ring groove has an iron ring insert designed to accept a keystone-style top ring. Ring thicknesses are 3.00 mm for the top and 2.00 mm for the second compression ring.
