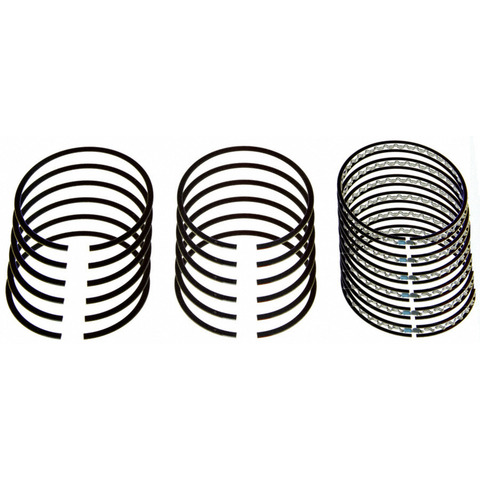

Sealed E-1001KC .50MM piston ring set for the 2013-2018 Ram 1500 V6 3.6L and other vehicles seals each piston against its cylinder wall and controls oil. This engine piston ring set covers six cylinders and comes oversized by 0.50 mm.
- Chrome-plated top ring facings for performance under demanding conditions
- Second ring seats instantly and controls inter-ring pressure to improve cylinder sealing
- Grey iron second ring with phosphate coating and a reverse torsional face
- Second ring transfers heat from piston to cylinder and aids oil control
- 3-piece flex vent oil ring keeps tension uniform while holding a positive seal
Quick facts
- Part: Sealed E-1001KC .50MM piston ring set
- Also called: engine piston ring set
- Fits: 2013-2018 Ram 1500 V6 3.6L and other vehicles
- Material: top ring steel with chrome; second ring grey iron with phosphate coating
- Condition: New
Heavy oil consumption, blue exhaust smoke or low compression can mean worn rings. These signs alone do not prove the rings are at fault; worn valve stem seals can cause similar oil use.
Fits
The 2012-2018 Jeep Wrangler V6 3.6L and the 2011-2017 Jeep Grand Cherokee V6 3.6L also take this ring set, along with many other Chrysler, Dodge, Ram and Volkswagen models. The 2013-2018 Ram 1500 V6 3.6L takes one set. If your vehicle is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Oversize: 0.50 mm
- Cylinders per set: 6
- Quantity per vehicle: 1 set
- Ring widths: top 1.20 mm, second 1.20 mm, oil 2.00 mm (groove widths 1.2 x 1.2 x 2.0 mm)
Build and materials
- Top ring: steel with chrome
- Second ring: grey iron with phosphate coating, reverse torsional face
- Oil ring: 3-piece flex vent
- Condition: New
- Country of origin: United States
In the box
Compression rings, rails and an oil spacer.
Interchange: PR1169.20 · C37796-020
42155CP20 · 2C4566020
This part cross-references / interchanges with the following part numbers:
42155CP20, PR1169.20, C37796-020, 2C4566020
Frequently Asked Questions
Is this Sealed Power piston ring set right for the 2013-2018 Ram 1500 V6 3.6L?
Yes. Sealed E-1001KC .50MM fits the 2013-2018 Ram 1500 V6 3.6L, and the 2012-2018 Jeep Wrangler V6 3.6L is on its fitment list too.
What pieces come in the E-1001KC .50MM ring set?
The set holds compression rings, rails and an oil spacer for six cylinders. Sealed E-1001KC .50MM is sold as one set.
How far oversized is this piston ring set?
It is oversized by 0.50 mm. The top and second rings are 1.20 mm wide, and the oil ring is 2.00 mm wide.
Is the top ring chrome plated on this piston ring set?
Yes. The top ring is steel with chrome on its facing, and the second ring is grey iron with a phosphate coating.
What kind of oil ring does the Sealed E-1001KC .50MM set have?
It has a 3-piece flex vent oil ring. The design keeps tension uniform while holding a positive seal.
