Piston Set for 2005-2017 Honda Odyssey & More - Sealed 13621CP .75MM

$323.99
Sealed Power Engine Piston Set 13621CP.75MM
Sealed Power Engine Piston Set 13621CP.75MM

Vehicles this part fits
    Part number: 13621CP.75MM
    UPC: 019826221209
    Condition: New
    Weight: 6.00 LBS
    Pack of 6
    $323.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

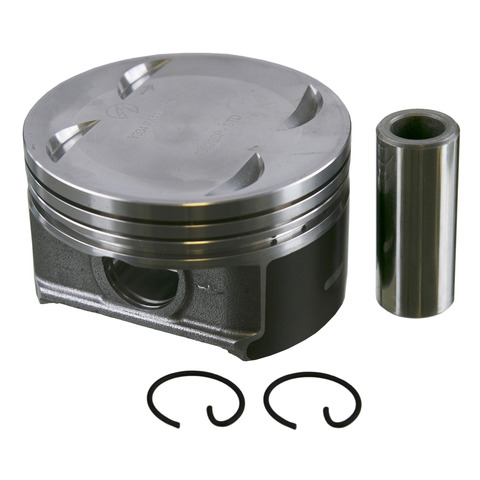

    Sealed Power Engine Piston Set P/N:13621CP .75MM (Pack of 6)
    Sealed Power Engine Piston Set P/N:13621CP .75MM (Pack of 6)
    $323.99
    $323.99

    Sealed 13621CP .75MM piston set for the 2005-2017 Honda Odyssey V6 3.5L and other vehicles replaces worn pistons in the engine's cylinders. This engine piston set is made oversize, for cylinders machined to a larger diameter.

    • Cast aluminum pistons, cast with FM135 for strength and durability
    • Up-tilt ring grooves improve piston-to-ring sealing and blow-by control
    • Aluminum casting and machining to exacting tolerances
    • Oversize of 0.75 mm over the standard piston size

    Quick facts

    • Part: Sealed 13621CP .75MM piston set
    • Also called: engine piston set
    • Fits: 2005-2017 Honda Odyssey V6 3.5L and other vehicles
    • Material: cast aluminum
    • Condition: New

    Oil burning, low compression or an engine knock can mean worn pistons. Those signs alone do not prove the pistons are at fault, since worn valve seals can burn oil too. The V6 takes six pistons, one per cylinder.

    Fits

    It also fits the 2005-2015 Honda Pilot V6 3.5L and the 2008-2010 Honda Accord V6 3.5L. Driving something else? Look for your car in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Oversize: 0.75 mm
    • Quantity per vehicle: 6
    • Compression height: 29.73 mm and 30.75 mm
    • Piston pin outside diameter: 22.00 mm
    • Top compression ring thickness: 1.20 mm and 1.24 mm
    • Second compression ring thickness: 1.20 mm and 1.24 mm
    • Oil ring thickness: 2.83 mm

    Build and materials

    • Type: cast piston set
    • Piston material: cast aluminum
    • Condition: New
    • Country of origin: India

    In the box

    One piston set. Assembly lubricant is not included.

    Interchange: P268A.30 · P4906(6).75 · 224-3916-0.75MM
    12582404 · 13010RGLA00 · 11836 · 12606999 · PAH38Z

    This part cross-references / interchanges with the following part numbers:

    P268A.30, P4906(6).75, 12582404, 13010RGLA00, 224-3916-0.75MM, 11836, 12606999, PAH38Z

    Frequently Asked Questions

    Are these Honda Accord pistons right for the 2008-2010 V6 3.5L?

    Yes. Sealed 13621CP .75MM is listed for the 2008-2010 Honda Accord V6 3.5L. For other cars, look in the "Vehicles it fits" section.

    Does this Sealed Power piston set come with assembly lubricant?

    No. Assembly lubricant is not included with Sealed 13621CP .75MM, so it has to be bought separately.

    What size and material are these oversized pistons?

    They are oversize by 0.75 mm and made of cast aluminum, cast with FM135. The piston pin outside diameter is 22.00 mm.

    What do the up-tilt ring grooves do on this piston set?

    The grooves are tilted upward. This improves the seal between each piston and its rings and gives good control of blow-by.

    Does number 224-3916-0.75MM match this piston set?

    Yes. 224-3916-0.75MM is one of the numbers on the Interchange line for this Sealed Power piston set, along with P268A.30 and 12582404.

    Reviews

    No reviews yet — be the first to review this product.

    Write a Review
