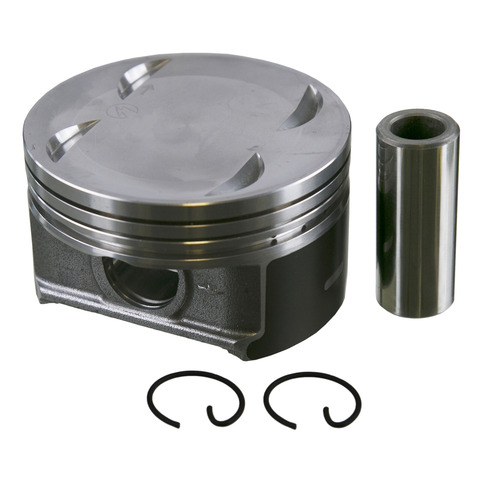

Sealed 13621NCP piston set for the 2005-2017 Honda Odyssey V6 3.5L and other vehicles passes combustion force from the cylinder to the connecting rods. The cast aluminum pistons have a dish head and meet or exceed OEM specifications.
- Cast with FM135 for strength and durability
- Aluminum casting and machining for reliability, durability and long part life
- Exacting tolerances and state-of-the-art manufacturing
- Up-tilt ring grooves improve piston-to-ring sealing and blow-by control
Quick facts
- Part: Sealed 13621NCP piston set
- Also called: engine piston set
- Fits: 2005-2017 Honda Odyssey V6 3.5L and other vehicles
- Material: cast aluminum
- Condition: New
Oil burning, blue exhaust smoke or low compression can go with worn pistons, but rings, valve seals or scored bores can also lead to them. Once the engine is apart, look over the old pistons and bores for scoring or cracked ring lands, and measure them before deciding the pistons are the cause.
Fits
The vehicles it fits include the 2005-2017 Honda Odyssey V6 3.5L, the 2005-2015 Honda Pilot V6 3.5L and the 2008-2010 Honda Accord V6 3.5L, and each takes six pistons. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 6
- Oversized: No
- Compression height: 30.75 mm
- Top compression ring thickness: 1.24 mm
- Second compression ring thickness: 1.24 mm
- Oil ring thickness: 2.83 mm
Build and materials
- Piston head type: Dish
- Material: Cast aluminum, cast with FM135
- Condition: New
- Country of origin: India
In the box
Assembly lubricant is not included.
Interchange: P4906(6)STD · 224-3916 · SP12-119 · SPRC12-119-S
P268A · 12582404 · 13010RGLA00 · 11836 · 12606999 · PAH38Z
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
P268A, P4906(6)STD, 12582404, 13010RGLA00, 224-3916, 11836, SP12-119, SPRC12-119-S, 12606999, PAH38Z
Frequently Asked Questions
Will these pistons fit a 2008-2010 Honda Accord V6 3.5L?
Yes. Sealed 13621NCP fits the 2008-2010 Honda Accord V6 3.5L, and that engine takes six pistons. Open the "Vehicles it fits" section to check any other model.
What ring thicknesses does this engine piston set list?
The Sealed 13621NCP top and second compression ring thicknesses are both 1.24 mm, and the oil ring thickness is 2.83 mm. Compression height is 30.75 mm.
What are the Sealed 13621NCP pistons made of, and what head do they have?
Sealed 13621NCP pistons are cast aluminum with a dish head. They are cast with FM135 for strength and durability.
How can I tell whether old pistons need replacing?
With the engine apart, scoring on the skirts, cracked ring lands or worn ring grooves can mean a piston needs replacing. Compare the old piston's compression height with the 30.75 mm listed for this set.
Does this piston set come with assembly lubricant?
No, assembly lubricant is not included, so it has to be bought separately. These pistons are also not oversized.
