Piston Set for 2005-2015 Toyota Tacoma & More - Sealed Power 13628CPA

$595.99
Sealed Power Engine Piston Set 13628CPA
Sealed Power Engine Piston Set 13628CPA - view 2
Sealed Power Engine Piston Set 13628CPA
Sealed Power Engine Piston Set 13628CPA - view 2

Vehicles this part fits
    Part number: 13628CPA
    UPC: 019826264749
    Condition: New
    Weight: 8.00 LBS
    Pack of 6
    $595.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Sealed Power Engine Piston Set P/N:13628CPA (Pack of 6)
    Sealed Power Engine Piston Set P/N:13628CPA (Pack of 6)
    $595.99
    $595.99

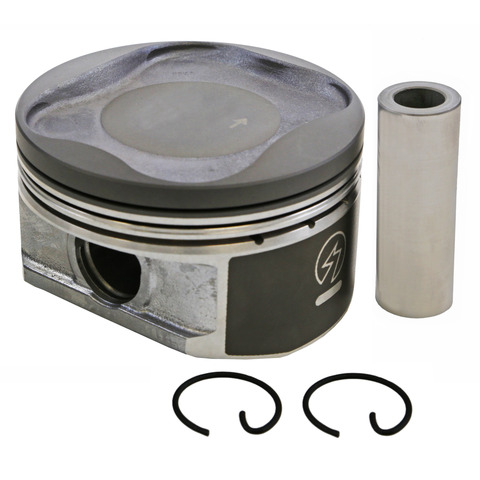

    Sealed Power 13628CPA piston set for the 2005-2015 Toyota Tacoma V6 4.0L and other vehicles transfers combustion force to the connecting rods. These Sealed Power pistons are application-specific and designed to help restore engine performance.

    • Up-tilt ring grooves improve piston-to-ring side sealing for blow-by control, efficiency and economy
    • Coated skirt maintains a stable oil film, resists scuffing and keeps the piston square in the bore
    • Crown, valve reliefs and skirts are CNC machined
    • Cast aluminum piston with a dish head

    Quick facts

    • Part: Sealed Power 13628CPA piston set
    • Also called: engine piston set
    • Fits: 2005-2015 Toyota Tacoma V6 4.0L and other vehicles
    • Material: Cast aluminum
    • Condition: New

    Oil burning with blue exhaust smoke, low compression or an engine knock can mean worn pistons, though worn piston rings or leaking valve stem seals can be behind the same signs, so find the cause before replacing anything.

    Fits

    This piston set fits the 2005-2015 Toyota Tacoma V6 4.0L and the 2005-2014 Toyota Tundra V6 4.0L, and both engines take six pistons.

    Specifications

    Fit and size

    • Quantity per vehicle: 6
    • Compression height: 33.35 mm
    • Piston pin outside diameter: 0.8660 in
    • Top compression ring thickness: 1.20 mm
    • Second compression ring thickness: 1.20 mm
    • Size: not oversized

    Build and materials

    • Piston material: cast aluminum
    • Piston head type: dish
    • Skirt: coated
    • Condition: New
    • Country of origin: India

    In the box

    A cast piston set. Assembly lubricant is not included.

    Interchange: 224-3894 · P4018(6)STD
    P969 · 11871 · PATO47B · 131010P020

    This part cross-references / interchanges with the following part numbers:

    2243894, P969, P4018(6)STD, 224-3894, 11871, PATO47B, 131010P020

    Frequently Asked Questions

    Does this Sealed Power piston set fit the 2005-2014 Toyota Tundra V6 4.0L?

    Yes. Sealed Power 13628CPA fits the 2005-2014 Toyota Tundra V6 4.0L and the 2005-2015 Toyota Tacoma V6 4.0L.

    Are these Sealed Power cast pistons made of aluminum?

    Yes. The pistons are cast aluminum with a dish head and a coated skirt.

    What piston pin size does this Sealed Power engine piston take?

    The piston pin outside diameter on Sealed Power 13628CPA is 0.8660 in.

    Is this engine piston set oversized?

    No. Sealed Power 13628CPA is not an oversized set.

    What is the compression height of the 13628CPA pistons?

    The compression height is 33.35 mm, and the piston head is a dish type.
