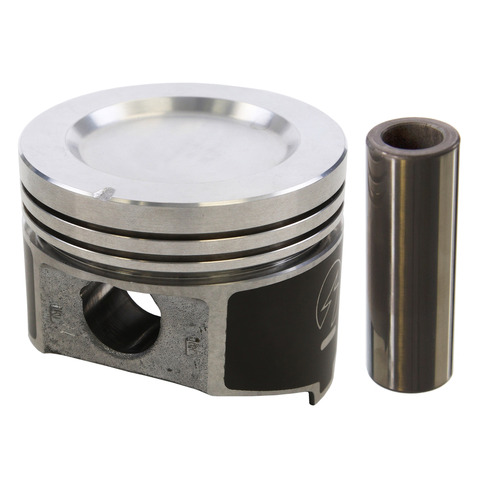

Sealed Power 520CP piston set for the 1986-1992 Ford Ranger V6 2.9L and other vehicles replaces the pistons that turn combustion pressure into crankshaft force. This engine piston set gives the performance and dependability of original equipment pistons.
- Cast aluminum pistons made with FM413 Eutectic proprietary alloy

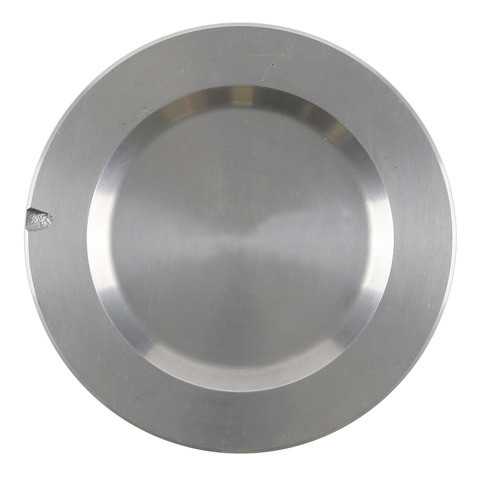

- Dish-type piston head
- Blended skirt coat to reduce engine wear and fatigue and decrease piston slap
Quick facts
- Part: Sealed Power 520CP piston set
- Also called: engine piston set
- Fits: 1986-1992 Ford Ranger V6 2.9L and other vehicles
- Material: Cast aluminum
- Condition: New
Oil use, blue exhaust smoke, a knock from the engine or low compression can mean the pistons are worn, though worn piston rings or a worn cylinder bore can be behind them too, so sort out which before you order. The V6 2.9L takes six pistons, one per cylinder.
Fits
It is a direct-fit replacement for the 1986-1992 Ford Ranger V6 2.9L, the 1986-1990 Ford Bronco II V6 2.9L and the 1988-1989 Merkur Scorpio V6 2.9L.
Specifications
Fit and size
- Quantity per vehicle: 6
- Compression height: 1.525 in
- Piston pin outside diameter: 0.9447 in
- Top compression ring thickness: 1.60 mm
- Second compression ring thickness: 1.75 mm
- Size: not oversized
Build and materials
- Piston material: cast aluminum
- Piston head type: dish
- Grade type: Premium
- Condition: new
- Country of origin: India
In the box
One cast piston set. Assembly lubricant is not included.
Interchange: P1564(6)STD
1199
Frequently Asked Questions
Does the Sealed Power piston set fit the 1988-1989 Merkur Scorpio V6 2.9L?
Yes. Sealed Power 520CP fits the 1988-1989 Merkur Scorpio V6 2.9L, and each cylinder takes one piston from the set.
Are Sealed Power pistons in the 520CP oversized?
No. This set is not oversized. The piston pin outside diameter is 0.9447 in and the compression height is 1.525 in.
What are Sealed Power cast pistons made of?
These pistons are cast aluminum, cast with FM413 Eutectic proprietary alloy, and have a dish head type.
Does this Sealed Power engine piston set come with assembly lubricant?
No. Sealed Power 520CP does not include assembly lubricant.
Can I use Sealed Power 520CP in place of P1564(6)STD?
Yes. P1564(6)STD and 1199 are the other numbers that Sealed Power 520CP replaces.
