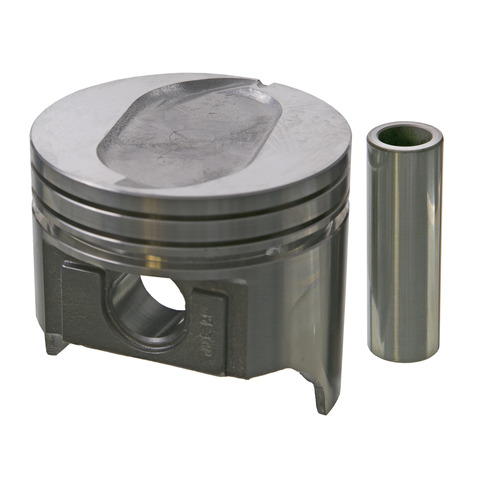

Sealed 413AP 30 piston set for the 1969-1973 Ford Country Sedan V8 7.0L and other vehicles transfers combustion force to the connecting rod. This engine piston set is cast for rebuilds of older engines and meets or exceeds OEM specifications.
- Sealed Power Vintage line for classic engine rebuilds
- Cast aluminum pistons made with FM132 eutectic proprietary alloy

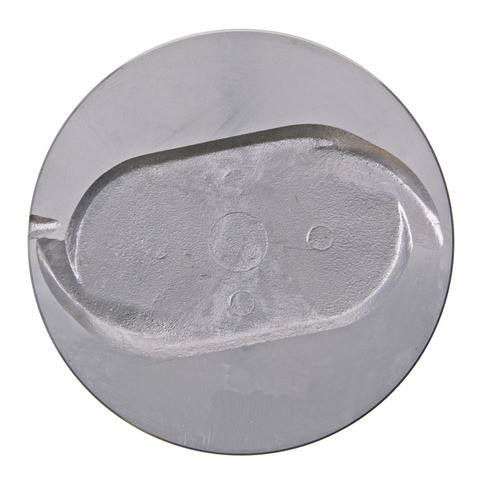

- Recessed piston head
- Oversize of 0.030 in for a 4.3600 in bore diameter
- Piston pin outside diameter of 1.0402 in (26.421 mm) with a 0.06 in pin offset
Quick facts
- Part: Sealed 413AP 30 piston set
- Also called: engine piston set
- Fits: 1969-1973 Ford Country Sedan V8 7.0L and other vehicles
- Material: Cast aluminum
- Condition: New
Blue exhaust smoke, rising oil use or an engine knock can mean worn pistons, but worn piston rings or scored cylinder walls can be behind them too, so find the actual cause before you rebuild. Each application takes eight, one per cylinder.
Fits
It is listed for a wide range of Ford, Lincoln and Mercury models, including the 1969-1973 Ford Country Sedan V8 7.0L, the 1969-1973 Ford Country Squire V8 7.0L and the 1969-1973 Ford Custom 500 V8 7.0L. Owners of other models can find their car's years and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per application: 8
- Bore diameter: 4.3600 in
- Oversize: 0.030 in
- Piston pin outside diameter: 1.0402 in (26.421 mm)
- Compression height: 1.883 in
- Pin offset: 0.06 in (1.524 mm)
- Top compression ring thickness: 0.0781 in
- Second compression ring thickness: 0.0781 in
- Oil ring thickness: 0.1875 in
- Minimum clearance: 0.0015 @ 2.720 from top of piston
Build and materials
- Material: Cast aluminum
- Alloy: FM132 eutectic
- Piston head: Recessed
- Condition: New
- Country of origin: India
In the box
Pistons for the eight cylinders of the engine. Assembly lubricant is not included.
Interchange: P3084(8)030
P734030 · 91161030 · TC1869030 · 2241869030 · 1000P30 · C8SZ6108B · D3SZ6108F · 8161P30 · 1161030 · L1245F30 · Z30057030
This part cross-references / interchanges with the following part numbers:
P734030, 91161030, TC1869030, 2241869030, P3084(8)030, 1000P30, C8SZ6108B, D3SZ6108F, 8161P30, 1161030, L1245F30, Z30057030
Frequently Asked Questions
Is the Sealed 413AP 30 piston set right for a 1969-1973 Ford Country Squire V8 7.0L?
Yes. Sealed 413AP 30 is listed for the 1969-1973 Ford Country Squire V8 7.0L, and other Ford, Lincoln and Mercury models are covered in the "Vehicles it fits" section.
What bore size does this 0.030 oversize piston set need?
These pistons are 0.030 in oversize and are made for a 4.3600 in bore diameter. The piston pin outside diameter is 1.0402 in (26.421 mm).
Are the Sealed 413AP 30 pistons cast or forged?
They are cast. The Sealed 413AP 30 pistons are cast aluminum, made with FM132 eutectic proprietary alloy.
Does this piston set come with assembly lubricant?
No. Assembly lubricant is not included with this piston set.
What is the Sealed Power Vintage line these pistons belong to?
Sealed Power Vintage components cover applications over 35 years old and are intended for classic engine rebuilds.
