Sealed Power H1515CPA piston set for the 2009 Chevrolet Silverado 1500 V8 6.2L and other vehicles transfers combustion force to the connecting rod. Also called an engine piston set, it holds cast Sealed Power pistons, and a V8 takes eight, one per cylinder.

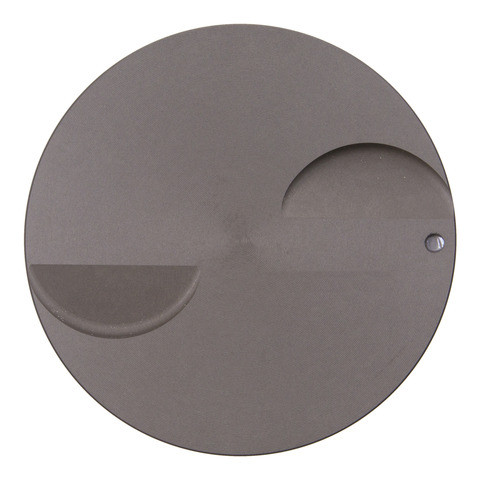

- Flat top anodized hypereutectic coated piston
- Skirt coated with a blend of graphite, teflon and molybdenum
- Blended skirt coat is designed to reduce engine wear, fatigue and piston slap, and to support horsepower and fuel efficiency
Quick facts
- Part: Sealed Power H1515CPA piston set
- Also called: engine piston set
- Fits: 2009 Chevrolet Silverado 1500 V8 6.2L and other vehicles
- Material: Hypereutectic
- Condition: New
Oil burning, lost power or a knock from the engine can mean worn pistons, though worn piston rings or leaking valve seals can be behind any of them, so find the cause before a rebuild.
Fits
Listed for a wide range of Chevrolet, GMC, Cadillac and Hummer models, it is a direct-fit replacement for the 2009 Chevrolet Silverado 1500 V8 6.2L, the 2007-2009 GMC Sierra 1500 V8 6.2L and the 2008-2009 Chevrolet Tahoe V8 6.2L. If your truck or SUV is a different one, look up your year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 8
- Piston pin outside diameter: 0.9430 in
- Compression height: 1.328 in
- Top compression ring thickness: 1.50 mm
- Second compression ring thickness: 1.50 mm
- Oversized: No
Build and materials
- Type: cast piston set, flat top
- Piston material: Hypereutectic
- Finish: anodized
- Skirt coating: graphite, teflon and molybdenum
- Condition: New
- Country of origin: United States
In the box

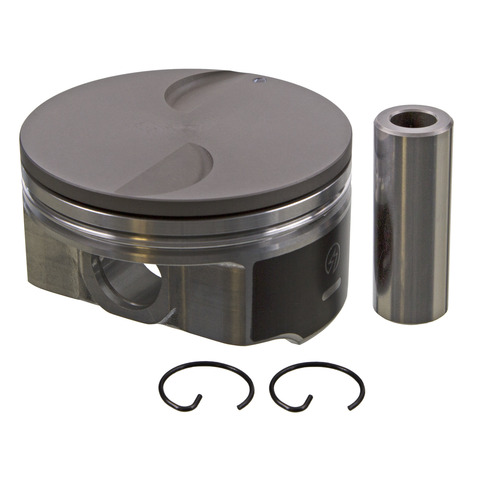

Cast pistons, pins and clips. Assembly lubricant is not included.
Interchange: 224-3888 · P5076(8)STD
P3217 · 19178597 · 3530HCA
This part cross-references / interchanges with the following part numbers:
2243888, P3217, P5076(8)STD, 19178597, 224-3888, 3530HCA
Frequently Asked Questions
Is the Sealed Power H1515CPA piston set right for a 2009 Chevrolet Silverado 1500 V8 6.2L?
Yes. Sealed Power H1515CPA is listed for the 2009 Chevrolet Silverado 1500 V8 6.2L and the 2007-2009 GMC Sierra 1500 V8 6.2L, as well as other vehicles in the "Vehicles it fits" section.
What pieces come with these Sealed Power cast pistons?
The set comes with cast pistons, pins and clips. Assembly lubricant is not included, so plan to buy it separately.
Are Sealed Power hypereutectic pistons like this one flat top?
Yes. The Sealed Power H1515CPA piston has a flat top and is an anodized hypereutectic piston, with a skirt coated in graphite, teflon and molybdenum.
Does this Sealed Power piston set replace P3217?
Yes. P3217 is a cross-reference for this piston set, listed alongside the other numbers on the Interchange line.
Is this Sealed Power engine piston made in the United States?
Yes. The country of origin listed for this piston set is the United States.
