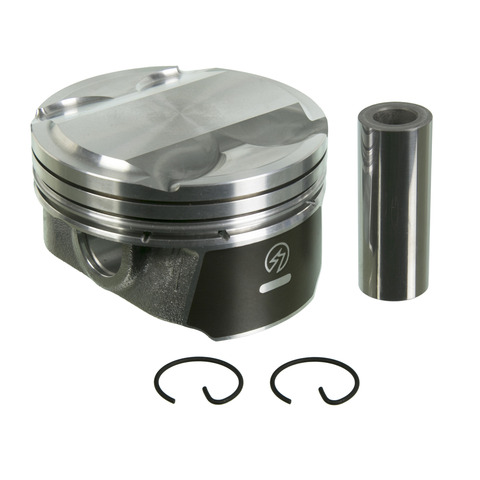

Sealed H1525CP .50MM piston set for the 2015-2017 Ford F-150 V6 3.5L and other vehicles gives the engine 0.50 mm oversized pistons. As an engine piston set in the 0.50 mm oversize, it is for cylinders bored out to match.
- Hypereutectic piston cast with FM S2N proprietary alloy
- Duroshield® graphite coated piston helps prevent scuffing of skirt and cylinder wall
- Up-tilt ring grooves improve piston-to-ring side sealing for blow-by control, efficiency and economy
- Ultra precise pin bores with precision-machined lube slots keep lubrication tolerances controlled with either pin installation method
Quick facts
- Part: Sealed H1525CP .50MM piston set
- Also called: engine piston set
- Fits: 2015-2017 Ford F-150 V6 3.5L and other vehicles
- Material: Hypereutectic
- Condition: New
Worn pistons can show up as piston slap knocking, oil burning with blue exhaust smoke or low compression. Low compression alone does not prove the pistons are at fault, since worn piston rings can also lower it. The 2013-2018 Ford Explorer V6 3.5L takes six pistons.
Fits
This piston set fits the 2015-2017 Ford F-150 V6 3.5L, the 2013-2018 Ford Explorer V6 3.5L, the 2014-2018 Ford Edge V6 3.5L and other vehicles.
Specifications
Fit and size
- Oversize: 0.50 mm
- Quantity per vehicle: 6
- Compression height: 31.25 mm
- Piston pin outside diameter: 23.00 mm
- Top compression ring thickness: 1.50 mm
- Second compression ring thickness: 1.20 mm
Build and materials
- Construction: cast piston set
- Piston material: Hypereutectic
- Piston head type: Dome
- Coating: Duroshield® graphite
- Condition: New
- Country of origin: India
In the box
One piston set. Assembly lubricant is not included.
Interchange: P4213.20 · 224-4013-0.50MM
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
P4213.20, 224-4013-0.50MM
Frequently Asked Questions
Is the Sealed H1525CP .50MM piston set right for the 2013-2018 Ford Explorer V6 3.5L?
Yes. Sealed H1525CP .50MM fits the 2013-2018 Ford Explorer V6 3.5L, which takes six pistons. To check a different car, look it up in the "Vehicles it fits" section.
Does this piston set come with assembly lubricant?
No. Assembly lubricant is not included with this piston set, so you will need to get it separately for the build.
How much oversize is the Sealed H1525CP .50MM piston set?
Sealed H1525CP .50MM is 0.50 mm oversize, for cylinders bored to that size. It has a 31.25 mm compression height and a 23.00 mm piston pin outside diameter.
Are these pistons hypereutectic and graphite coated?
Yes. This piston set is hypereutectic, cast with FM S2N proprietary alloy, and has a Duroshield® graphite coating that helps prevent scuffing of the skirt and cylinder wall.
Does the Sealed H1525CP .50MM piston set replace 224-4013-0.50MM?
Yes. 224-4013-0.50MM is one of the numbers listed as interchange for Sealed H1525CP .50MM; the other is P4213.20.
