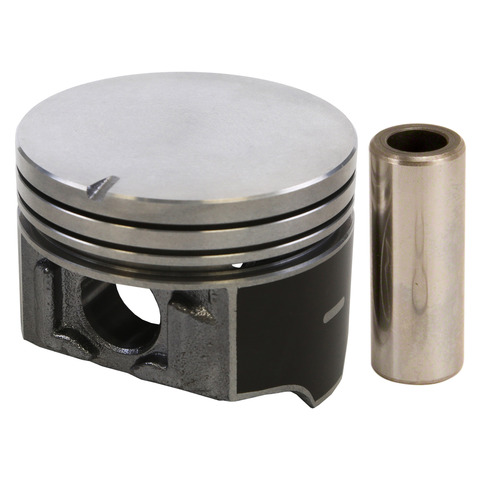

Sealed H497CP .50MM piston set for the 1991-1998 Ford Ranger V6 3.0L and other vehicles carries combustion force from each cylinder down to its connecting rod. This engine piston set is an oversize design for bores machined 0.50 mm larger.
- Cast hypereutectic construction
- Flat piston head
- Blended skirt coat designed to reduce engine wear and piston slap
Quick facts
- Part: Sealed H497CP .50MM piston set
- Also called: engine piston set
- Fits: 1991-1998 Ford Ranger V6 3.0L and other vehicles
- Material: Hypereutectic
- Condition: New
Blue exhaust smoke, oil use or a slapping noise from a cold engine can come from worn pistons, but worn rings, valve seals or other engine wear can look the same. Before replacing pistons, look at the cylinder walls and measure the bores with the engine off and cool. A shop can run compression and leakage tests.
Fits
It also fits the 1986-1998 Ford Taurus V6 3.0L and the 1994-2003 Mazda B3000 V6 3.0L. If your car is not one of these, look for its year and engine in the "Vehicles it fits" section. The V6 takes six pistons, one per cylinder.
Specifications
Fit and size
- Oversize: 0.50 mm
- Piston head type: Flat
- Piston pin outside diameter: 0.9122 in
- Compression height: 1.515 in
- Top and second compression ring thickness: 1.50 mm each
- Quantity per vehicle: 6
Build and materials
- Piston material: Hypereutectic
- Construction: Cast
- Grade type: Premium
- Condition: New
- Country of origin: India
In the box
Assembly lubricant is not included.
Interchange: P4137.20 · P5042(6).50 · 224-3965-0.50MM
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
P4137.20, P5042(6).50, 224-3965-0.50MM
Frequently Asked Questions
Does the Sealed H497CP .50MM piston set fit the 1991-1998 Ford Ranger V6 3.0L?
Yes. Sealed H497CP .50MM fits the 1991-1998 Ford Ranger V6 3.0L, an engine that takes six pistons, one per cylinder.
What oversize are the H497CP .50MM pistons?
These pistons are oversized by 0.50 mm, so they go in cylinder bores machined to that oversize.
Are these Sealed Power pistons cast, and what are they made of?
Yes, Sealed H497CP .50MM pistons are cast. The piston material is hypereutectic, and the head is flat.
Does the H497CP .50MM piston set come with assembly lubricant?
No. Assembly lubricant is not included with this piston set.
Does Sealed Power H497CP .50MM replace the P4137.20 piston set?
Yes. P4137.20 is listed as an interchange number for Sealed H497CP .50MM, along with P5042(6).50 and 224-3965-0.50MM.
