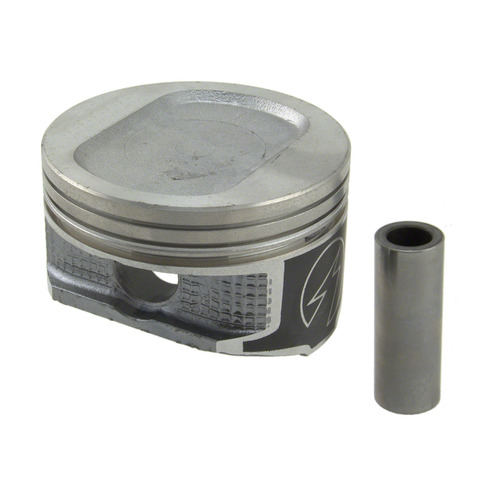

Sealed H653CP 60 engine piston for the 1977-1996 Ford F-150 V8 5.8L and other vehicles turns combustion pressure into force on the connecting rod. This hypereutectic set is 0.060 in oversize and has a recessed head.
- Helps improve cylinder sealing for less blow-by
- Retains standard ring gaps in top groove
- DUROSHIELD skirt-coated piston
- Moly-graphite coating that helps extend engine life
- Reduces friction to support higher fuel economy
- Helps prevent damage from inadequate lubrication at start-up
Quick facts
- Part: Sealed H653CP 60 engine piston
- Fits: 1977-1996 Ford F-150 V8 5.8L and other vehicles
- Material: Hypereutectic
- Condition: New
Worn pistons can show up as blow-by, oil burning or low compression. Worn piston rings, scored cylinder walls or leaking valve seals can be behind those signs too, so find the cause before you buy pistons.
Fits
The vehicles it fits include the 1977-1996 Ford F-150 V8 5.8L, the 1977-1996 Ford F-250 V8 5.8L and the 1978-1996 Ford Bronco V8 5.8L. Eight pistons go into a 1977-1996 Ford F-250 V8 5.8L. If your car is not named here, open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 8
- Bore diameter: 4.0000 in
- Oversize: 0.060 in
- Compression height: 1.765 in
- Piston pin outside diameter: 0.9122 in (23.17 mm)
- Pin offset: 0.06 in (1.524 mm)
- Top and second compression ring thickness: 0.0781 in
- Oil ring thickness: 0.1875 in
Build and materials
- Piston material: Hypereutectic
- Head type: Recessed
- Skirt coating: DUROSHIELD
- Condition: New
- Country of origin: Mexico
In the box
One set of eight pistons. Assembly lubricant is not included.
Installation notes
- The minimum clearance is given in the Piston Fitting Information on the carton label.
Interchange: P3046(8)060 · 224-2040.060
This part cross-references / interchanges with the following part numbers:
P3046(8)060, 224-2040.060
Frequently Asked Questions
Will the Sealed H653CP 60 pistons fit a 1977-1996 Ford F-150 V8 5.8L?
Yes, Sealed H653CP 60 is listed for the 1977-1996 Ford F-150 V8 5.8L, which takes eight pistons. For any other model, open the "Vehicles it fits" section.
What oversize is this Sealed Power piston set?
This set is 0.060 in oversize, with a bore diameter of 4.0000 in. The compression height is 1.765 in.
Are these pistons hypereutectic and skirt-coated?
Yes, the piston material is hypereutectic and the skirt is DUROSHIELD-coated, with a moly-graphite coating meant to reduce friction.
Does this piston set include assembly lubricant?
No, assembly lubricant is not included, so get it separately. This listing is a set of eight pistons.
Where do I find the minimum piston clearance for this set?
The minimum clearance is in the Piston Fitting Information printed on the carton label of the Sealed H653CP 60 set.
