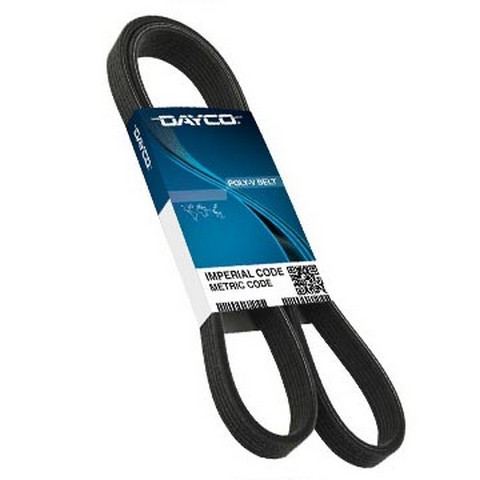

Serpentine Belt for 1987-1996 Ford F-150 & More - Dayco 5060970

Dayco 5060970 serpentine belt for the 1987-1996 Ford F-150 6-cylinder 4.9L and other vehicles transfers crankshaft power to the engine's belt-driven accessories. This Dayco serpentine belt is listed for the fan, main drive position.

• Six ribs with a straight rib profile, K-section cross section and standard rib depth
• EPDM construction with aramid reinforcement
• Made to SAE J1459 and SAE J2432 standards
• Operating temperature range of -45 F to 212 F (-42.7 C to 100 C)

Quick facts

• Part: Dayco 5060970 serpentine belt
• Fits: 1987-1996 Ford F-150 6-cylinder 4.9L and other vehicles
• Position: Fan, main drive
• Condition: New

Cracks, glazing, missing ribs or a squeal at startup can mean the belt is worn, though a weak tensioner or a misaligned pulley can show up the same way, so sort out which one it is before you replace the belt.

Fits

The 1987-1996 Ford F-150 6-cylinder 4.9L takes one belt. This serpentine belt also fits the 1990-1993 Chevrolet C1500 V8 7.4L, the 1990-1994 C1500 V6 4.3L, V8 5.0L or 5.7L and the 1990-1994 Chevrolet K1500 V6 4.3L, V8 5.0L or 5.7L. If your vehicle is not named here, look it up by year and engine on the Buyer's Guide tab.

Specifications

Interchange: JK6-976 · JK6-976A · JK6-976B · JK6-976C · 25-060970 · 25-060970HD
6K970 · 6PK2465 · 6PK2470 · K060970 · 4060970 · PK060970 · 970K6 · K060970HD · K060970RPM · 60970 · JK6914A
