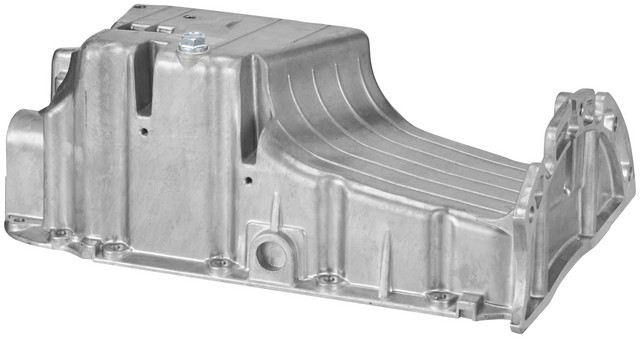

Spectra Premium GMP103A oil pan for the 2009-2011 Chevrolet Aveo 4-cylinder 1.6L and other vehicles holds engine oil in a wet sump at the bottom of the engine. Engineering and quality control ensure the Spectra Premium oil pan meets or exceeds the performance of the original equipment it replaces.
- Aluminum pan with an uncoated finish
- Drain plug included, with an M14 - 1.5 drain thread
- Dipstick port on the pan
- 15 mounting holes
- Wet sump with a center sump location
Quick facts
- Part: Spectra Premium GMP103A oil pan
- Also called: engine oil pan
- Fits: 2009-2011 Chevrolet Aveo 4-cylinder 1.6L and other vehicles
- Material: Aluminum
- Condition: New
Oil spots where the car is parked, a dented or cracked pan or a damaged drain-plug thread can mean the pan needs replacing. A worn pan gasket, a loose drain plug or a leaking rear main seal can leak oil too, so find the cause before buying. One pan sits under the engine.
Fits
This oil pan is made for the 2009-2011 Chevrolet Aveo 4-cylinder 1.6L, the 2009-2011 Chevrolet Aveo5 4-cylinder 1.6L and the 2009-2010 Pontiac G3 4-cylinder 1.6L. Drivers of other cars can look up their model in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Maximum width: 305 mm
- Maximum depth: 164 mm
- Mounting holes: 15
- Drain thread size: M14 - 1.5
- Sump location: Center
Build and materials
- Material: Aluminum
- Finish: Uncoated
- Sump type: Wet
- Dipstick port: Yes
- Condition: New
- Country of origin: China
In the box
One oil pan with its drain plug. The pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3312469904732283, 3310222, 3310666, 264049, 25181235, 96970445, 31100184, SPIGMP103A, 99656181, NOE99656181, OP37656
Frequently Asked Questions
Is this the right oil pan for a 2009-2011 Chevy Aveo 4-cylinder 1.6L?
Yes. Spectra Premium GMP103A fits the 2009-2011 Chevrolet Aveo 4-cylinder 1.6L. If your car is a different model, look for it in the "Vehicles it fits" section.
Does the Spectra Premium engine oil pan come with a drain plug?
Yes. The GMP103A comes with its drain plug. The pickup, windage tray and crankshaft wiper are not included.
Does this oil pan have a baffle or an oil level sensor port?
No. This pan is not baffled and has no oil level sensor port. It does have a dipstick port and a center wet sump.
How can I tell if my oil pan is damaged?
Oil spots where the car is parked, a dent or crack in the pan, or a damaged drain-plug thread can point to a bad pan. A shop can inspect it if you are unsure.
What are the dimensions of this oil pan?
Maximum width is 305 mm and maximum depth is 164 mm. It has 15 mounting holes and an M14 - 1.5 drain thread.
