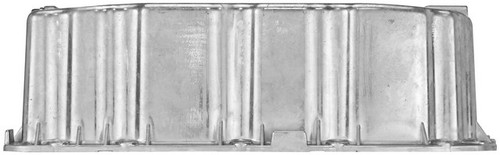

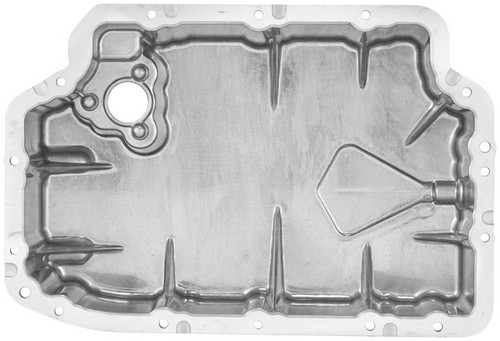

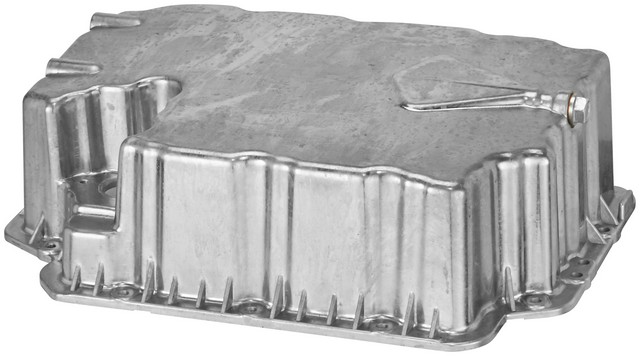

Spectra Premium MDP12A lower oil pan for the 2020-2023 Mercedes-Benz Sprinter 4-cylinder 2.1L and other vehicles closes the bottom of the engine and holds its oil supply. The Spectra Premium oil pan is engineered and quality-controlled to match or beat the performance of the original equipment pan it replaces.
- Aluminum construction with an uncoated finish
- Wet sump type with the sump at the center of the pan
- Drain plug included, with an M14 - 1.5 drain thread
- 16 mounting holes for fastening the pan to the engine
Quick facts
- Part: Spectra Premium MDP12A oil pan
- Also called: engine oil pan
- Fits: 2020-2023 Mercedes-Benz Sprinter 4-cylinder 2.1L and other vehicles
- Position: Lower
- Material: Aluminum
- Condition: New
Oil spots on the ground where the vehicle parks, or a dented or cracked pan, can mean the pan is damaged. Seepage near the pan can also run down from a seal or gasket above it, so find where it starts before you replace the pan.
Fits
Among the vehicles it fits are the 2019-2023 Mercedes-Benz Sprinter 4500 V6 3.0L, the 2010-2022 Mercedes-Benz Sprinter 2500 V6 3.0L and the 2020-2022 Sprinter 2500 4-cylinder 2.1L. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: lower
- Quantity per vehicle: 1
- Maximum width: 276 mm
- Maximum depth: 118 mm
- Sump location: center
- Mounting holes: 16
- Drain thread size: M14 - 1.5
Build and materials
- Sump type: wet
- Material: aluminum
- Finish: uncoated
- Baffled: no
- Oil level sensor port and dipstick port: none
- Condition: new
- Country of origin: China
In the box
One lower oil pan with its drain plug; a vehicle needs one. A pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3310676, 264286, SPIMDP12A, 6420101428, 6420103728, 99658331, NOE99658331, OP37758
Frequently Asked Questions
Is this the right oil pan for a 2019-2023 Mercedes-Benz Sprinter 4500 V6 3.0L?
Yes, Spectra Premium MDP12A is listed for the 2019-2023 Mercedes-Benz Sprinter 4500 V6 3.0L. To check a different model or engine, open the "Vehicles it fits" section.
Does the Spectra Premium engine oil pan come with a drain plug?
Yes, the Spectra Premium MDP12A includes its drain plug, which has an M14 - 1.5 thread; a pickup, windage tray and crankshaft wiper are not included.
What are the width and depth of the MDP12A lower oil pan?
This aluminum pan measures 276 mm at its maximum width and 118 mm at its maximum depth. The pan has 16 mounting holes and a center sump.
Does the MDP12A oil pan have a dipstick port or an oil level sensor port?
No. This wet-sump pan has neither a dipstick port nor an oil level sensor port, and it is not baffled.
What are signs a lower oil pan like this one is damaged?
Oil spots on the ground where the vehicle parks, or a visible dent or crack in the pan, can be signs. Because the pan holds the engine's oil, a leak there shows up as lost oil.
