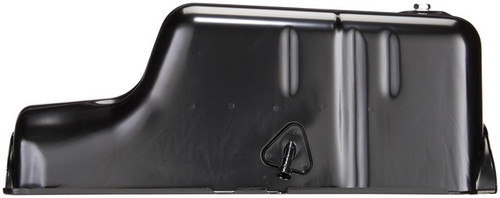

Spectra Premium GMP52A oil pan for the 1997-1998 Chevrolet C6500 Kodiak V8 6.0L, the 1999-2000 C6500 Kodiak V8 7.4L and other vehicles holds the engine's oil in a wet sump at the bottom of the engine. The Spectra Premium oil pan is built to meet or exceed the performance of the original equipment it replaces.
- Cold rolled steel (EDDQ) body with a powder-coated finish
- Baffled design
- Drain plug included, with an M12 - 1.75 drain thread
- Wet sump with the sump at the rear
Quick facts
- Part: Spectra Premium GMP52A oil pan
- Also called: engine oil pan
- Fits: the 1997-1998 Chevrolet C6500 Kodiak V8 6.0L, the 1999-2000 C6500 Kodiak V8 7.4L and other vehicles
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
A dented, cracked or rusted pan, or oil seeping from the pan or around its drain plug, can mean the pan needs replacing. Those signs alone do not prove the pan is the problem, since a worn pan gasket can leak oil in a similar way.
Fits
The vehicles it fits include the 1997-1998 Chevrolet C7500 Kodiak V8 6.0L, the 1999-2000 C7500 Kodiak V8 7.4L, the 1997-1998 GMC C6500 Topkick V8 6.0L and the 1999-2000 C6500 Topkick V8 7.4L. If your truck is not named here, open the "Vehicles it fits" section and match your exact model and engine.
Specifications
Fit and size
- Sump location: Rear
- Quantity per vehicle: 1
- Maximum width: 260 mm
- Maximum depth: 221 mm
- Mounting holes: 20
- Drain thread size: M12 - 1.75
Build and materials
- Material: Cold Rolled Steel (EDDQ)
- Finish: Powder coated
- Sump type: Wet
- Baffled: Yes
- Dipstick port: Yes
- Oil level sensor port: No
- Condition: New
- Country of origin: Taiwan
In the box
One oil pan with its drain plug. This listing holds one oil pan, and the vehicle takes one. The oil pickup, windage tray and crankshaft wiper are not included.
This part cross-references / interchanges with the following part numbers:
3312469904732565, 3310136, 264088, 10198907, 10240722, SPIGMP52A, 99656381, NOE99656381
Frequently Asked Questions
Does the Spectra Premium GMP52A fit the 1999-2000 Chevrolet C6500 Kodiak V8 7.4L?
Yes. Spectra Premium GMP52A fits the 1999-2000 Chevrolet C6500 Kodiak V8 7.4L and the 1997-1998 C6500 Kodiak V8 6.0L. The "Vehicles it fits" section covers other models.
Is the Spectra Premium engine oil pan baffled?
Yes. The Spectra Premium GMP52A pan is baffled and has a wet sump at the rear. A windage tray is not included.
Does this oil pan come with a drain plug?
Yes, the drain plug is included and has an M12 - 1.75 thread. The oil pickup, windage tray and crankshaft wiper are not included.
Does the GMP52A oil pan have an oil level sensor port?
No. It has a dipstick port but no oil level sensor port and no engine oil cooler return fitting.
How big is the GMP52A oil pan?
The maximum width is 260 mm and the maximum depth is 221 mm. The pan has 20 mounting holes.
