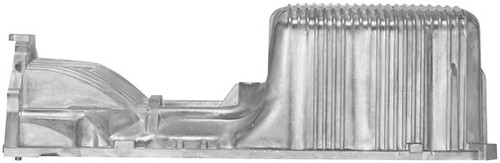

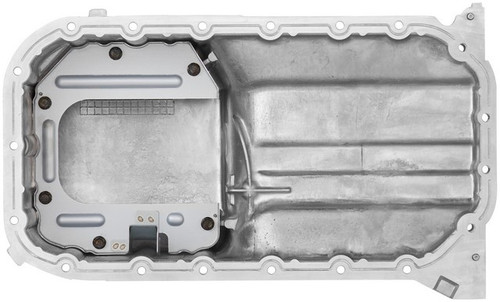

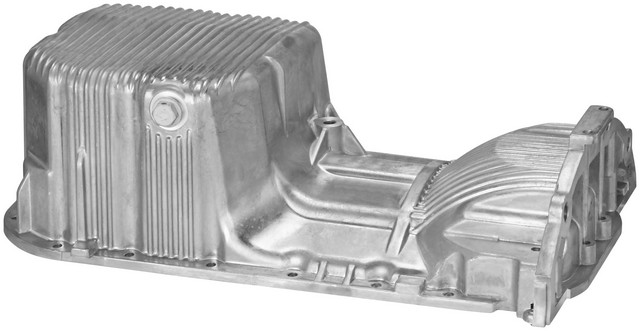

Spectra Premium HYP06A oil pan for the 2001-2010 Hyundai Elantra 4-cylinder 2.0L and other vehicles holds the engine's oil at the bottom of the engine. Engineering, manufacturing technology and quality control ensure the pan meets or exceeds the performance of the original equipment it replaces.
- Aluminum pan with an uncoated finish
- Baffled wet-sump design
- Drain plug included
- Sump located at the front of the pan
Quick facts
- Part: Spectra Premium HYP06A oil pan
- Also called: engine oil pan
- Fits: 2001-2010 Hyundai Elantra 4-cylinder 2.0L and other vehicles
- Material: Aluminum
- Condition: New
Oil spots under the parked car, a visible crack or dent, or a damaged drain thread can mean the pan is worn or damaged. A loose drain plug or a worn pan gasket can be behind a drip too, so find the source of the leak before you replace the pan.
Fits
The pan is listed for a wide range of Hyundai and Kia models, led by the 2001-2010 Hyundai Elantra 4-cylinder 2.0L and the 2010-2011 Kia Soul 4-cylinder 2.0L, and it is also an oil pan for the 2005-2010 Kia Sportage 4-cylinder 2.0L. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Sump location: Front
- Quantity per vehicle: 1
- Maximum width: 273 mm
- Maximum depth: 137 mm
- Mounting holes: 19
- Drain thread size: M14 - 1.5
Build and materials
- Material: Aluminum
- Finish: Uncoated
- Sump type: Wet, baffled
- Drain plug: Included
- Condition: New
- Country of origin: China
In the box
One oil pan with its drain plug. The oil pickup, windage tray and crankshaft wiper are not included. This listing holds one oil pan, and the vehicle takes one.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3312469904732341, 3310196, 103235, 264605, 58641, 2152023501, 2152023502, 2152023601, 2152023602, 2152023603, 2152023604, 52023501, 52023502, 52023601, 52023602, 52023603, SPIHYP06A, 2152023605, 2002714, NOE2002714, OP38120
Frequently Asked Questions
Is this the right oil pan for a 2001-2010 Hyundai Elantra 4-cylinder 2.0L?
Yes. Spectra Premium HYP06A is listed for the 2001-2010 Hyundai Elantra 4-cylinder 2.0L, and the car takes one pan.
Will this oil pan fit the 2010-2011 Kia Soul 4-cylinder 2.0L?
Yes, Spectra Premium HYP06A is listed for the 2010-2011 Kia Soul 4-cylinder 2.0L. For any other car, open the "Vehicles it fits" section and look up your model and engine.
Does this engine oil pan come with a drain plug?
Yes, the drain plug is included, with an M14 - 1.5 thread. The oil pickup, windage tray and crankshaft wiper are not included.
Is the Spectra Premium HYP06A a baffled aluminum pan?
Yes. It is a baffled wet-sump pan made of aluminum with an uncoated finish, 273 mm wide and 137 mm deep at its maximum.
What are the signs of a cracked or damaged aluminum oil pan?
Fresh oil spots where the car was parked, a crack or dent you can see on the pan, or a damaged drain thread are the signs to watch for. Oil that keeps dripping needs a shop's attention promptly.
