Spectra Premium NSP01A lower oil pan for the 1989-2000 Nissan Sentra 4-cylinder 1.6L, the 2000-2006 Sentra 4-cylinder 1.8L and other vehicles holds the engine's oil in a wet sump at the front. Innovative engineering, manufacturing technology and quality control ensure that this oil pan meets or exceeds the performance of the original equipment it replaces.
- Cold rolled steel (EDDQ) construction with a powder-coated finish

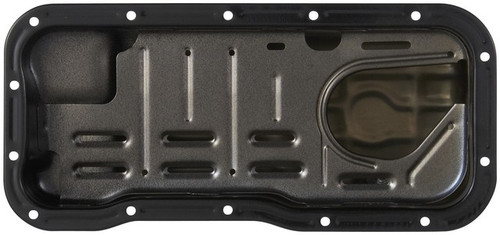

- Baffled wet-sump design with the sump at the front
- Drain plug included, with an M14 - 1.5 drain thread
- 14 mounting holes
Quick facts
- Part: Spectra Premium NSP01A oil pan
- Also called: engine oil pan
- Fits: the 1989-2000 Nissan Sentra 4-cylinder 1.6L, the 2000-2006 Sentra 4-cylinder 1.8L and other vehicles
- Position: Lower
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
Oil drips under the engine, a dented or cracked pan, or rust on the metal can mean the oil pan needs replacing. Before you replace it, rule out a loose drain plug or loose pan bolts, since either one can leave the same drip. Each engine takes one pan, at its lowest point.
Fits
Other vehicles it fits include the 1995-2017 Nissan Tsuru 4-cylinder 1.6L and the 1995-2004 Nissan Tsubame 4-cylinder 1.6L.
Specifications
Fit and size
- Position: Lower
- Quantity per vehicle: 1
- Maximum width: 203 mm
- Maximum depth: 140 mm
- Mounting holes: 14
- Drain thread size: M14 - 1.5
- Sump location: Front
Build and materials
- Type: Baffled wet sump
- Material: Cold Rolled Steel (EDDQ)
- Finish: Powder coated
- Dipstick port: No; oil level sensor port: No
- Condition: New
- Country of origin: Canada
In the box
One oil pan with its drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3310086, 103069, KNSP1A, 111104Z000, 111105M000, 1111077A12, 11110F4100, 11110F4600, 264500, 58227, 58285, 58630, SPINSP01A, 1010862, 501145, OP38070
Frequently Asked Questions
Is the NSP01A the right oil pan for a 2000-2006 Nissan Sentra 4-cylinder 1.8L?
Yes, Spectra Premium NSP01A fits the 2000-2006 Nissan Sentra 4-cylinder 1.8L. It also fits the 1989-2000 Sentra 4-cylinder 1.6L.
Does Spectra Premium NSP01A fit the 1995-2017 Nissan Tsuru 4-cylinder 1.6L?
Yes, NSP01A fits the 1995-2017 Nissan Tsuru 4-cylinder 1.6L. If your car is another model, look up its year and engine in the "Vehicles it fits" section on this page.
Does this engine oil pan have a dipstick port or an oil level sensor port?
No, this oil pan has neither a dipstick port nor an oil level sensor port. It is a baffled wet-sump pan with the sump at the front.
Is a drain plug included with the NSP01A oil pan?
Yes, the drain plug is included and has an M14 - 1.5 thread. The oil pickup, windage tray and crankshaft wiper are not included.
What is the Spectra Premium NSP01A oil pan made of?
Spectra Premium NSP01A is cold rolled steel (EDDQ) with a powder-coated finish. Its maximum width is 203 mm and its maximum depth is 140 mm.
