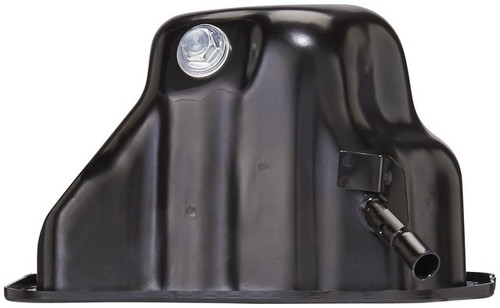

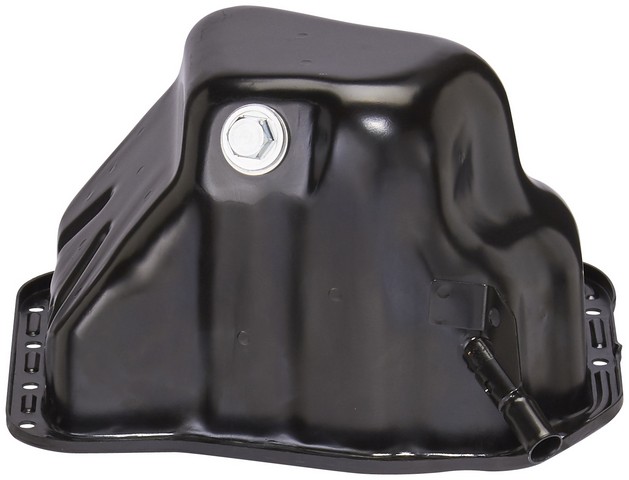

Spectra Premium SUP04B oil pan for the 2005 Subaru Outback H4 2.5L and other vehicles holds the engine's oil in a wet center sump. Spectra Premium oil pans meet or exceed the performance of the original equipment they replace.
- Cold rolled steel (EDDQ) pan with a powder-coated finish
- Baffled wet sump with the sump in the center
- Dipstick port on the pan
- 14 mounting holes
Quick facts
- Part: Spectra Premium SUP04B oil pan
- Also called: engine oil pan
- Fits: the 2005 Subaru Outback H4 2.5L and other vehicles
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
Oil spots under the engine, or a dented, cracked or rusted pan, can mean this engine oil pan needs replacing. A leaking drain plug, oil filter, valve cover gasket or rear main seal can leave oil in the same place, so find the cause before you buy a new pan.
Fits
This oil pan is a direct-fit replacement for the 2005 Subaru Outback H4 2.5L, the 2005-2007 Subaru Impreza H4 2.5L and the 2005 Subaru Legacy H4 2.5L. A single pan covers each car.
Specifications
Fit and size
- Quantity per vehicle: 1
- Maximum width: 267 mm
- Maximum depth: 163 mm
- Mounting holes: 14
- Drain thread size: M20 - 1.5
Build and materials
- Material: Cold Rolled Steel (EDDQ)
- Finish: powder coated
- Sump: wet, center location, baffled
- Dipstick port: yes
- Oil level sensor port: no
- Condition: new
- Country of origin: Taiwan
In the box
One oil pan with its drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3310586, 264155, SPISUP04B, 99656641, NOE99656641, 11109AA130, 11109AA131
Frequently Asked Questions
Is this an oil pan for the 2005-2007 Subaru Impreza H4 2.5L?
Yes. Spectra Premium SUP04B fits the 2005-2007 Subaru Impreza H4 2.5L, and that car takes one pan.
Is this the oil pan for the 2005 Subaru Legacy H4 2.5L?
Yes. Spectra Premium SUP04B fits the 2005 Subaru Legacy H4 2.5L, and that car takes one pan.
Does the Spectra Premium SUP04B oil pan include the drain plug and oil pickup?
Yes, the drain plug is included, with an M20 - 1.5 thread. The oil pickup, windage tray and crankshaft wiper are not included.
Is this oil pan baffled, and does it have a dipstick port?
Yes to both. This pan has a baffled wet sump with a center sump location and a dipstick port. It has no oil level sensor port.
Is the Spectra Premium SUP04B pan steel or aluminum?
It is cold rolled steel (EDDQ) with a powder-coated finish.
