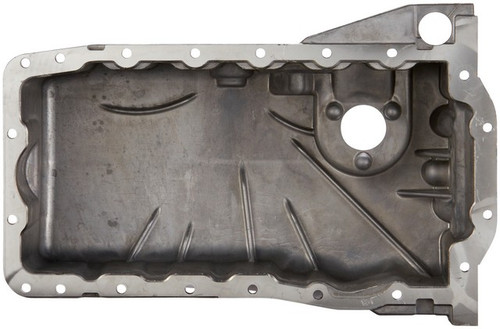

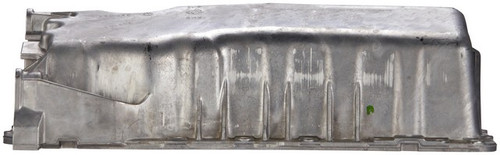

Spectra Premium VWP21A oil pan for the 1999-2005 Volkswagen Jetta 4-cylinder 1.8L and other vehicles holds engine oil in a center wet sump. This engine oil pan is a single unit, and the engine takes one.
- Aluminum pan with an uncoated finish
- Center wet sump for holding engine oil
- Drain plug included, with an M14 - 1.5 drain thread
- Oil level sensor port built into the pan
- 20 mounting holes
Quick facts
- Part: Spectra Premium VWP21A oil pan
- Also called: engine oil pan
- Fits: 1999-2005 Volkswagen Jetta 4-cylinder 1.8L and other vehicles
- Material: Aluminum
- Condition: New
Oil spots under the car, a cracked or dented pan, or a damaged drain thread can mean the pan is worn, though a leaking pan gasket or a loose drain plug can also be behind oil spots, so find the source before you replace the pan.
Fits
The pan also fits the 2001-2006 Volkswagen Golf 4-cylinder 1.8L and the 2006-2008 Seat Ibiza 4-cylinder 1.8L. Spectra Premium oil pans meet or exceed the performance of the original equipment they replace. Driving a different car? Look yours up in the "Vehicles it fits" section to see its years and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Maximum width: 279 mm
- Maximum depth: 119 mm
- Mounting holes: 20
- Drain thread size: M14 - 1.5
- Sump location: Center
Build and materials
- Material: Aluminum
- Finish: Uncoated
- Sump type: Wet
- Baffled: No
- Oil level sensor port: Yes
- Dipstick port: No
- Condition: New
- Country of origin: Canada
In the box
One oil pan with a drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3310232, 103308, 170004, 264707, 58596B, SPIVWP21A, URO000136, A6060322907VCO, 038103601Q, 038103603L, 038103603M
Frequently Asked Questions
Does this VW Jetta oil pan fit the 1999-2005 Volkswagen Jetta 4-cylinder 1.8L?
Yes. Spectra Premium VWP21A fits the 1999-2005 Volkswagen Jetta 4-cylinder 1.8L, and this listing is one pan. For other cars, use the "Vehicles it fits" section.
Is this a VW Golf oil pan for the 2001-2006 Volkswagen Golf 4-cylinder 1.8L?
Yes. This oil pan fits the 2001-2006 Volkswagen Golf 4-cylinder 1.8L, and the engine takes one pan.
What size is the drain plug thread on the Spectra Premium VWP21A?
The drain thread is M14 - 1.5. Spectra Premium VWP21A comes with its drain plug included.
Does this aluminum oil pan come with the oil pickup?
No. The oil pickup, windage tray and crankshaft wiper are not included. The pan ships with its drain plug.
Does this oil pan have a dipstick port or a sensor port?
This pan has an oil level sensor port and no dipstick port. It is a center-sump wet pan and is not baffled.
