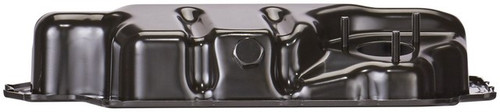

Spectra Premium VWP59A lower oil pan for the 2013-2024 Volkswagen Jetta 4-cylinder 1.4L and other vehicles collects and holds the engine's oil. Spectra Premium builds its oil pans to meet or exceed the performance of the original equipment they replace.
- Cold rolled steel (EDDQ) construction with a powder-coated finish
- Drain plug included, with an M14 - 1.5 drain thread
- Wet sump design with the sump at the center of the pan
- 19 mounting holes
Quick facts
- Part: Spectra Premium VWP59A oil pan
- Also called: engine oil pan
- Fits: 2013-2024 Volkswagen Jetta 4-cylinder 1.4L and other vehicles
- Position: Lower
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
Oil spots under the car, a dented or rusted pan, or seepage along the pan edge can mean an engine oil pan needs replacing. A leaking drain plug, a worn gasket or a failing rear main seal can be behind these signs too, so find the cause before buying. Each engine takes a single pan, and this listing is one.
Fits
This lower oil pan is a direct-fit replacement for the 2013-2024 Volkswagen Jetta 4-cylinder 1.4L, the 2015-2021 Volkswagen Golf 4-cylinder 1.4L and the 2018-2021 Volkswagen Tiguan 4-cylinder 1.4L. Audi and SEAT models take it too, so if your car is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Lower
- Quantity per vehicle: 1
- Maximum width: 280 mm
- Maximum depth: 66 mm
- Sump location: Center
- Mounting holes: 19
- Drain thread size: M14 - 1.5
Build and materials
- Sump type: Wet
- Material: Cold Rolled Steel (EDDQ)
- Finish: Powder coated
- Drain plug: included
- Condition: New
- Country of origin: China
In the box
One oil pan with a drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3310681, 264294, SPIVWP59A, 99658441, NOE99658441, 04E103602B
Frequently Asked Questions
Is this the VW Jetta oil pan for 2013-2024 cars with the 4-cylinder 1.4L engine?
Yes. Spectra Premium VWP59A fits the 2013-2024 Volkswagen Jetta 4-cylinder 1.4L. Other vehicles are covered in the "Vehicles it fits" section.
Will a VW Golf oil pan like this one fit a 2015-2021 model with the 4-cylinder 1.4L engine?
Yes. Spectra Premium VWP59A fits the 2015-2021 Volkswagen Golf 4-cylinder 1.4L, which takes one pan.
Does the Spectra Premium VWP59A oil pan come with a drain plug?
Yes. It includes a drain plug with an M14 - 1.5 thread. The oil pickup, windage tray and crankshaft wiper are not included.
What is this oil pan made of, and how big is it?
This oil pan is cold rolled steel (EDDQ) with a powder-coated finish. Its maximum width is 280 mm and its maximum depth is 66 mm.
Is the VWP59A a wet sump pan, and does it have a dipstick port?
Yes, it is a wet sump pan with the sump at the center. This pan has no dipstick port and no oil level sensor port.
