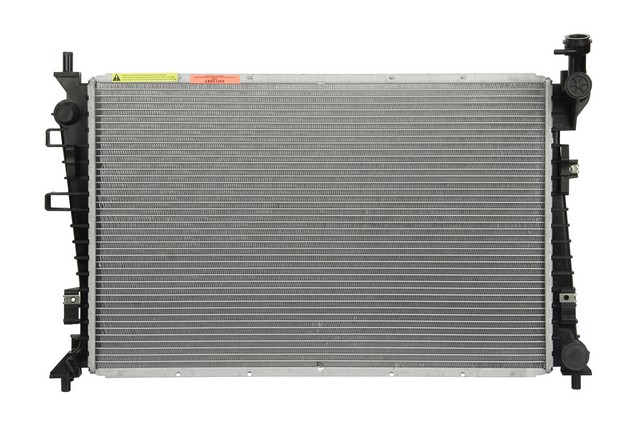

Spectra Premium CU13087 radiator for the 2008-2011 Ford Focus 4-cylinder 2.0L or 5-cylinder 2.5L cools the engine's coolant as it flows through the core. Its structure and design are built to take on the same durability and expectations as the OE.
- Aluminum core with plastic tanks
- Cross-flow layout with a single core row
- Inlet at the top left and outlet at the bottom right
- Post mounting type
Quick facts
- Part: Spectra Premium CU13087 radiator
- Fits: 2008-2011 Ford Focus 4-cylinder 2.0L or 5-cylinder 2.5L
- Material: Aluminum core, plastic tanks
- Condition: New
Coolant leaks or wet spots on the core or tanks, a cracked plastic tank, and an engine that runs hotter than normal can all mean a radiator is failing. A stuck thermostat can also run an engine hot, so these signs alone don't prove the radiator is the problem.
Fits
As a 2008-2011 Ford Focus radiator, it is a direct-fit replacement for the 4-cylinder 2.0L and the 5-cylinder 2.5L engines, and the car takes one.
Specifications
Fit and size
- Core height: 26.75 inch
- Core width: 16.4375 inch
- Core thickness: 0.625 inch
- Core rows: 1
- Inlet diameter: 1 inch
- Outlet diameter: 1.3125 inch
- Inlet header: 17.3125 inch long, 1.5625 inch wide
- Outlet header: 17.3125 inch long, 1.5625 inch wide
- Mounting type: Post
- Quantity per vehicle: 1
Build and materials
- Core material: Aluminum
- Tank material: Plastic
- Flow type: Cross flow
- Oil coolers: no internal engine or transmission oil cooler
- Condition: New
- Country of origin: Cambodia
In the box
One radiator. A frame is not included.
This part cross-references / interchanges with the following part numbers:
103474, 17788000045933696, 8013087, 2950, 3510, C13087, 0AFD5845, 13087, 2219043, 8S4Z8005A, H2MZ8005AB, 13087C, RAD13087, A13087, RAD41, OR13087, 13087DPI, A1308713N, FO3010286, 4113087, 438135, 8015, RA13087C
Frequently Asked Questions
Does the Spectra Premium CU13087 fit the 2008-2011 Ford Focus with the 5-cylinder 2.5L?
Yes. Spectra Premium CU13087 fits the 2008-2011 Ford Focus with either the 4-cylinder 2.0L or the 5-cylinder 2.5L engine.
Is the tank on this radiator plastic or aluminum?
The Spectra Premium CU13087 has plastic tanks and an aluminum core. The core is a single-row, cross-flow design.
What are the inlet and outlet diameters of this radiator?
The top left inlet is 1 inch in diameter and the bottom right outlet is 1.3125 inch.
Does this radiator have a built-in transmission oil cooler?
No. This radiator has no internal transmission oil cooler and no internal engine oil cooler.
How can I spot a leak on a radiator with plastic tanks?
With the engine off and cool, look for wet spots, dried coolant residue or cracks on the core and tanks. A shop can pressure-test the cooling system if you can't find the source.
