Radiator for 2011-2017 Nissan Juke - Spectra Premium CU13264

$230.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU13264
    UPC: 671607780703
    Condition: New
    Weight: 46.27 LBS
    Item Package Quantity: 1
    $230.99
    Adding to cart… The item has been added

    Have questions?

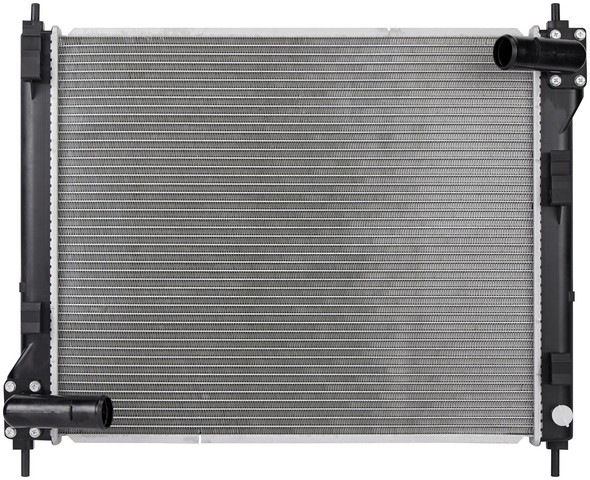

    Spectra Premium Radiator P/N:CU13264
    Spectra Premium Radiator P/N:CU13264
    $230.99
    $230.99

    Spectra Premium CU13264 radiator for the 2011-2017 Nissan Juke 4-cylinder 1.6L passes hot engine coolant through its core so the heat can shed into the air.

    • Aluminum core with one row and plastic tanks
    • Cross-flow layout with the inlet at the bottom left and the outlet at the top right
    • Post-type mounting
    • Inlet and outlet diameters of 1.375 inches each

    Quick facts

    • Part: Spectra Premium CU13264 radiator
    • Fits: 2011-2017 Nissan Juke 4-cylinder 1.6L
    • Material: aluminum core, plastic tanks

    Coolant leaks at the tanks or core, visible damage to the core or an engine that runs hot can mean this radiator is worn, though the thermostat or the water pump can also be behind them, so find the cause before replacing the radiator. This listing is one radiator.

    Fits

    This radiator is a direct-fit replacement for the 2011-2017 Nissan Juke 4-cylinder 1.6L, which takes one. Its structure and design are built to carry the same durability and expectations as the OE.

    Specifications

    Fit and size

    • Core height: 20 in
    • Core width: 16.875 in
    • Core thickness: 1 in
    • Core rows: 1
    • Inlet diameter: 1.375 in
    • Outlet diameter: 1.375 in
    • Inlet and outlet headers: 17.6875 in long, 2 in wide each
    • Quantity per vehicle: 1

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Flow type: cross flow
    • Mounting type: post
    • Country of origin: China

    In the box

    One radiator. A frame, an engine oil cooler and a transmission oil cooler are not included.

    Interchange: 103697 · 17788000045933581 · 8013264 · RK1679 · 2708 · 3549 · C13264 · 13264 · 13661 · 2214412 · 2219560 · 214101KC5A · 214103YM0A · 13264C · RAD13264 · A13264 · 67370 · 2413264 · 13264DPI · NI3010221 · 220234400 · 4113264 · RA13264C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    103697, 17788000045933581, 8013264, RK1679, 2708, 3549, C13264, 13264, 13661, 2214412, 2219560, 214101KC5A, 214103YM0A, 13264C, RAD13264, A13264, 67370, 2413264, 13264DPI, NI3010221, 220234400, 4113264, RA13264C

    Frequently Asked Questions

    Is this a 2011-2017 Nissan Juke radiator for the 4-cylinder 1.6L engine?

    Yes. Spectra Premium CU13264 is a direct-fit radiator for the 2011-2017 Nissan Juke 4-cylinder 1.6L, and that Juke takes one.

    Does this radiator come with a frame or an oil cooler?

    No. This listing is one radiator; a frame, an engine oil cooler and a transmission oil cooler are not included.

    What size are the inlet and outlet on the Spectra Premium CU13264?

    The Spectra Premium CU13264 inlet and outlet are each 1.375 inches in diameter, with the inlet at the bottom left and the outlet at the top right.

    How can I tell if a radiator with plastic tanks and an aluminum core is failing?

    Coolant seeping at the tanks or core, visible damage to the core, or an engine that runs hot can point to a worn radiator. Look only with the engine off and cool.

    Does Spectra Premium CU13264 replace radiator number 2214412?

    Yes. 2214412 is one of the other numbers that Spectra Premium CU13264 replaces.
