Radiator for 1998-2005 Lexus GS300 & More - Spectra Premium CU2222

$174.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2222
    UPC: 671607742305
    Condition: New
    Weight: 24.90 LBS
    Item Package Quantity: 1
    $174.99
    Adding to cart… The item has been added

    Have questions?

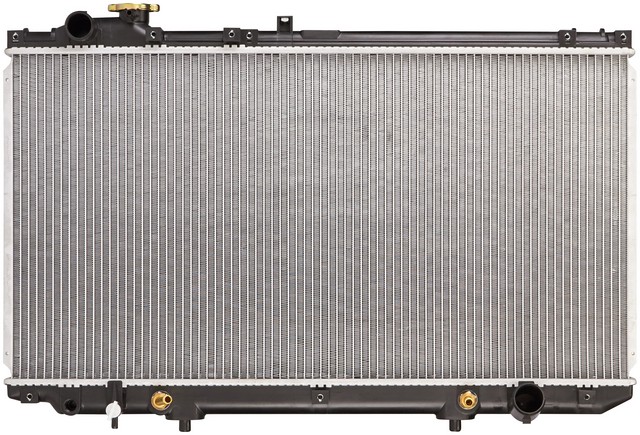

    Spectra Premium Radiator P/N:CU2222
    Spectra Premium Radiator P/N:CU2222
    $174.99
    $174.99

    Spectra Premium CU2222 radiator for the 1998-2005 Lexus GS300 6-cylinder 3.0L and other vehicles passes engine coolant through its core to release heat into the air. Its structure and design are built to carry the same durability and expectations as the OE.

    • Aluminum core with plastic tanks; single row, 29.4375 in wide and 15.75 in high
    • Internal concentric transmission oil cooler with 10 mm hose barb fittings, 14.75 in apart
    • Down-flow design with the inlet at the top left and the outlet at the bottom right
    • Inlet diameter of 1.3125 in and outlet diameter of 1.5 in
    • Bottom post and top saddle mounting

    Quick facts

    • Part: Spectra Premium CU2222 radiator
    • Fits: 1998-2005 Lexus GS300 6-cylinder 3.0L and other vehicles
    • Material: Aluminum core, plastic tanks
    • Condition: New

    Overheating, coolant stains or a dropping coolant level can point to a failing radiator, but those signs alone do not prove it; a worn water pump is another common cause of overheating.

    Fits

    This radiator fits the 1998-2005 Lexus GS300 6-cylinder 3.0L and the 1998-2000 Lexus GS400 V8 4.0L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core: 29.4375 in wide, 15.75 in high, 0.6875 in thick, 1 row
    • Inlet diameter: 1.3125 in (top left)
    • Outlet diameter: 1.5 in (bottom right)
    • Inlet and outlet header: 30.5 in long, 2 in wide
    • Transmission oil cooler fitting distance: 14.75 in
    • Mounting type: Bottom post / top saddle

    Build and materials

    • Flow type: Down flow
    • Core material: Aluminum
    • Tank material: Plastic
    • Transmission oil cooler: Internal, concentric, 10 mm hose barb fittings
    • Engine oil cooler: Not included
    • Frame: Not included
    • Condition: New
    • Country of origin: China

    In the box

    One radiator with its built-in transmission oil cooler. This listing holds one radiator, and these vehicles take one. A frame and an engine oil cooler are not included.

    Interchange: 2222 · 17788000045933856 · 8012222 · AR2222 · 2606 · C2222 · 0ATY5562 · 2213121 · B2222 · 2222C · RAD2222 · A2222 · 1640046570 · 2881 · 64762 · 2480982 · OR2222 · LX3010102 · 412222 · 7001A · 7001P · 431465 · 9708 · 1640046580

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    2222, 17788000045933856, 8012222, AR2222, 2606, C2222, 0ATY5562, 2213121, B2222, 2222C, RAD2222, A2222, 1640046570, 2881, 64762, 2480982, OR2222, LX3010102, 412222, 7001A, 7001P, 431465, 9708, 1640046580

    Frequently Asked Questions

    Does this GS300 radiator suit the 1998-2005 Lexus GS300 6-cylinder 3.0L?

    Yes. Spectra Premium CU2222 is a radiator for the 1998-2005 Lexus GS300 6-cylinder 3.0L, and the same part also fits the 1998-2000 Lexus GS400 V8 4.0L.

    Will this GS400 radiator work on the 1998-2000 Lexus GS400 V8 4.0L?

    Yes. Spectra Premium CU2222 fits the 1998-2000 Lexus GS400 V8 4.0L, and this listing is one radiator.

    Does this Spectra Premium radiator include a transmission oil cooler?

    Yes. The radiator has an internal concentric transmission oil cooler with 10 mm hose barb fittings. A frame and an engine oil cooler are not included.

    What size are the inlet and outlet on this radiator?

    The inlet at the top left is 1.3125 in across, and the outlet at the bottom right is 1.5 in across.

    How can I spot a leaking radiator?

    Look for coolant stains or crusty residue on the radiator and the ground beneath it, and watch for a falling coolant level or overheating. Check the level only with the engine cool.
