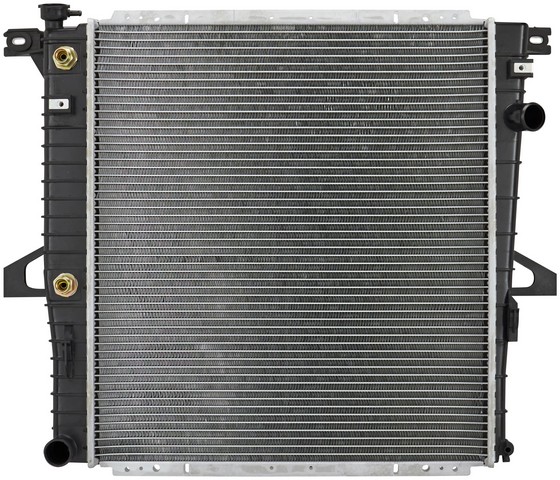

Spectra Premium CU2310 radiator for the 1998-2008 Ford Ranger V6 3.0L, the 1998-2011 Ranger V6 4.0L and other vehicles carries engine coolant through its core so the engine can shed heat. The structure and design of this Spectra Premium radiator are built to the same durability and expectations as the OE.
- Single-row cross-flow core in aluminum with plastic tanks
- Built-in plated transmission oil cooler with five plates
- 5/8-18 UNF female transmission cooler fittings, 12 in apart
- Flange mounting with a top-right inlet and a bottom-left outlet
Quick facts
- Part: Spectra Premium CU2310 radiator
- Fits: 1998-2008 Ford Ranger V6 3.0L, the 1998-2011 Ranger V6 4.0L and other vehicles
- Material: aluminum core, plastic tanks
- Condition: New
Coolant seeping from the core or tank seams, a coolant level that keeps dropping or a temperature gauge that climbs can all mean a radiator is failing. Before you replace the radiator, rule out the thermostat, radiator cap, hoses and water pump, because overheating and coolant loss do not always start in the radiator.
Fits
Besides the Ranger, this radiator is listed for a wide range of Ford, Mazda and Mercury models, including a radiator for the 1998-2001 Ford Explorer V6 4.0L and a Mazda B4000 radiator for the 1998-2010 V6 4.0L. If your vehicle is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core size: 26 in wide, 20.8125 in high, 1 in thick, 1 row
- Inlet and outlet diameter: 1.5 in
- Inlet and outlet header length: 23.9375 in
- Inlet and outlet header width: 3.125 in
- Mounting type: Flange
Build and materials
- Core material: Aluminum
- Tank material: Plastic
- Flow type: Cross flow
- Transmission oil cooler: Internal, plated
- Engine oil cooler: not included
- Condition: New
- Country of origin: Cambodia
In the box
This listing holds one radiator with its built-in transmission oil cooler, and each vehicle takes one. A frame and an engine oil cooler are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this Ford Ranger radiator right for a 1998-2011 Ford Ranger V6 4.0L?
Yes. Spectra Premium CU2310 is listed for the 1998-2011 Ford Ranger V6 4.0L and for the 1998-2008 Ranger V6 3.0L. Each takes one radiator.
Does this radiator come with a frame or an engine oil cooler?
No, the Spectra Premium CU2310 does not include a frame or an engine oil cooler. It does have a built-in transmission oil cooler.
What size are the transmission cooler fittings on this radiator?
The built-in plated transmission oil cooler has 5/8-18 UNF female fittings spaced 12 inches apart, and the cooler has five plates.
How can I look for a leak in this radiator?
With the engine off and cool, look for coolant stains or wet spots along the core and tank seams. A shop can pressure-test the cooling system for leaks you cannot see.
Is the CU2310 a cross-flow radiator, and where are the inlet and outlet?
Yes, it is a cross-flow design with a single-row core. The inlet is at the top right and the outlet at the bottom left, both 1.5 inches in diameter.
