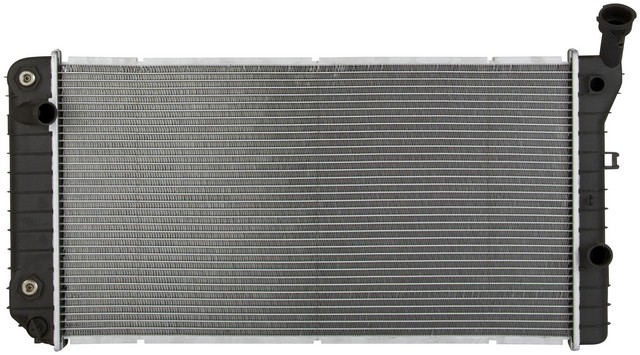

Spectra Premium CU658 radiator for the 1990 Chevrolet Lumina V6 3.1L, the 1990-1992 Lumina 4-cylinder 2.5L, the 1993 Lumina 4-cylinder 2.2L and other vehicles carries engine coolant through its core to shed engine heat. Its structure and design are built to meet the same durability expectations as the OE radiator.
- Cross-flow aluminum core with a single core row
- Plastic tank material paired with the aluminum core
- Built-in plated transmission oil cooler with 3 plates and 1/2-20 UNF Female fittings
- Saddle mounting with the inlet at the top left and the outlet at the bottom right
Quick facts
- Part: Spectra Premium CU658 radiator
- Fits: the 1990 Chevrolet Lumina V6 3.1L, the 1990-1992 Lumina 4-cylinder 2.5L, the 1993 Lumina 4-cylinder 2.2L and other vehicles
- Material: aluminum core, plastic tanks
- Condition: New
Coolant stains under the front of the car, steam or a climbing temperature gauge can mean a radiator is leaking or restricted. With the engine off and cool, look over the tanks and core for cracks, wet spots or crusty residue, and trace any wet spot to its source before replacing the radiator, since a hose or clamp leak looks much the same.
Fits
The vehicles it fits include the 1988-1989 Pontiac Grand Prix V6 2.8L, the 1989-1990 Grand Prix V6 3.1L and the 1990-1991 Grand Prix 4-cylinder 2.3L, along with the vehicles named at the top.
Specifications
Fit and size
- Core height: 28.25 in
- Core width: 15.0625 in
- Core thickness: 1.25 in
- Inlet diameter: 1.3125 in
- Outlet diameter: 1.3125 in
- Inlet and outlet headers: 16.375 in long, 2.375 in wide
- Transmission oil cooler distance between fittings: 11.5 in
- Inlet location: top left; outlet location: bottom right
- Mounting type: saddle
- Quantity per vehicle: 1
Build and materials
- Type: cross flow, 1 core row
- Core material: aluminum
- Tank material: plastic
- Transmission oil cooler: internal, plated, 3 plates, 1/2-20 UNF Female fittings
- Condition: new
- Country of origin: China
In the box
One radiator with its built-in transmission oil cooler. The frame and an engine oil cooler are not included. Each application takes one radiator.
Frequently Asked Questions
Is this the Pontiac Grand Prix radiator for the 1990-1991 model with the 4-cylinder 2.3L?
Yes, Spectra Premium CU658 fits the 1990-1991 Pontiac Grand Prix 4-cylinder 2.3L; if your car is not named here, look up its year and engine in the "Vehicles it fits" section.
Is this a Lumina radiator for the 1990-1992 model with the 4-cylinder 2.5L?
Yes. The Spectra Premium CU658 fits the 1990-1992 Chevrolet Lumina 4-cylinder 2.5L, and the 1990 Lumina V6 3.1L takes it as well.
Does the Spectra Premium CU658 include a transmission oil cooler?
Yes, it has a built-in plated transmission oil cooler with 1/2-20 UNF Female fittings; the frame and an engine oil cooler are not included.
Is the core on this radiator aluminum or plastic?
The core is aluminum and the tank material is plastic. This radiator is a cross-flow design with one core row.
What should I look for on a leaking cross-flow radiator with plastic tanks?
With the engine off and cool, look for wet spots, crusty residue or cracks on the plastic tanks and core. Coolant stains under the front or a climbing temperature gauge can point to a leak.
