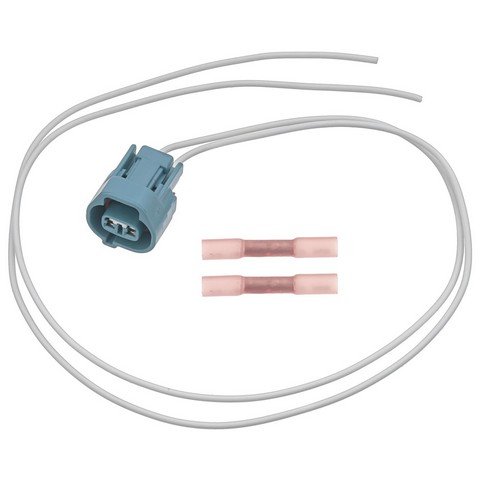

Reconnect the wiring to your A/C compressor clutch coil with the Standard Ignition A/C Clutch Coil Connector, part number S-1530. It fits many vehicles as a direct-fit replacement for the listed applications, among them the 1998-2023 Toyota Corolla and 2019-2024 Toyota RAV4 (all engines). The catalog also lists it as an A/C compressor connector, fog light connector and idle air control valve connector, with front, rear, front right and rear right positions depending on the application.

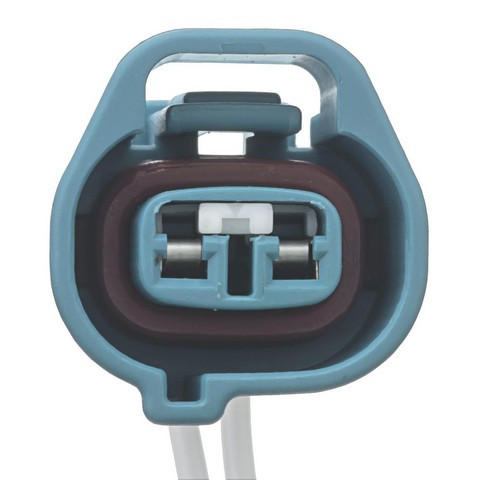

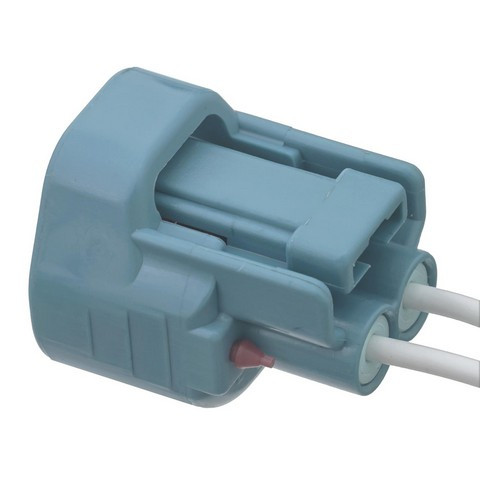

Specifications: plastic material with metal contact terminals, oval connector shape, two wires and two blade-type terminals, and push-on attachment. One connector per package. A dust shield is not included. Country of origin: Taiwan.
Signs this connector may need replacing include a cracked or melted housing, corroded or loose terminals, or an A/C clutch that engages only intermittently. Diagnose the circuit first. If a damaged connector is the cause, this part replaces it. The quantity needed varies by application.
This connector fits many vehicles. See the "Vehicles it fits" section for the full list.
Interchange: PT1028 · CONA517 · EC1027 · 6U2Z14S411DA · WPT869 · 88974056 · 88987964 · 88988454
This part cross-references / interchanges with the following part numbers:
What does the Standard Ignition S-1530 connector do?
It connects the vehicle wiring to the A/C compressor clutch coil. The catalog also lists it for fog light and idle air control valve applications.
Does the S-1530 come with a wiring harness?

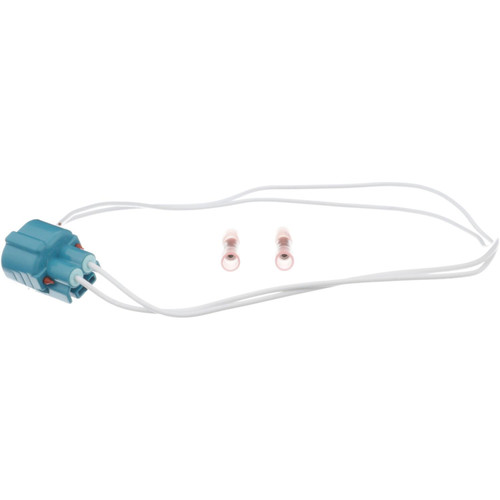

Yes. It comes factory-assembled with a 17-inch (431.8 mm) wiring harness. A dust shield is not included.
Is this connector weatherproof?
Yes. It is listed as weatherproof sealed and weather resistant. It has two wires, two blade-type terminals and a push-on attachment.
How many connectors do I need?
The quantity varies by application, and many listed vehicles use one or two. Each package contains one connector. Check the "Vehicles it fits" section for your vehicle.
How can I tell if my A/C clutch coil connector is bad?
Look for a cracked or melted housing, corroded or loose terminals, or intermittent A/C clutch engagement. Diagnose the circuit first. If the connector is the cause, this part replaces it.
