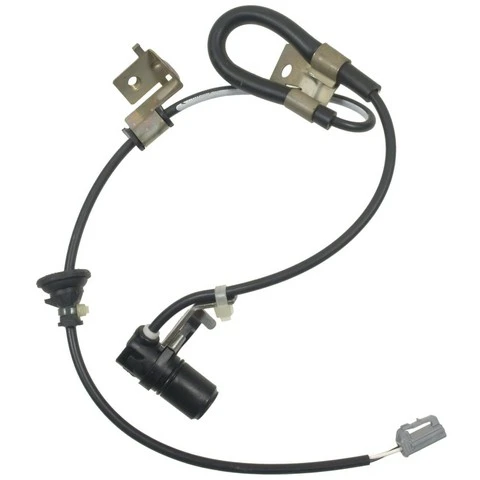

Standard Ignition ALS1244 rear left ABS wheel speed sensor for the 1996-1999 Toyota Celica reports wheel rotation speed to the anti-lock brake system. The sensor is engineered specifically for Toyota vehicles.
- Durable synthetic material made to withstand harsh operating conditions
- Location grommets and wire clips on the harness for proper mounting and routing
- Tested on vehicles for correct integration with electronic safety systems
- Sealed connector that protects against harsh conditions
Quick facts
- Part: Standard Ignition ALS1244 ABS wheel speed sensor
- Fits: 1996-1999 Toyota Celica
- Position: Rear left
- Material: Synthetic material
- Condition: New
An ABS warning light can come from a damaged sensor, but the wiring or other ABS parts can set it off too, so find the cause before replacing the sensor. With the engine off, look over the connector and any harness you can see for cracks, rubbing or corrosion. This listing is one sensor for the rear left wheel, which takes one; the rear right is ordered separately.
Fits
This rear left ABS wheel speed sensor is a direct-fit replacement for the 1996-1999 Toyota Celica.
Specifications
Fit and size
- Position: Rear left
- Mounting location: Wheel
- Quantity per vehicle: 1 at this position
- Number of bolt holes: 3
- Harness length: 26.5 in (673 mm)
Build and materials
- Material: Synthetic material

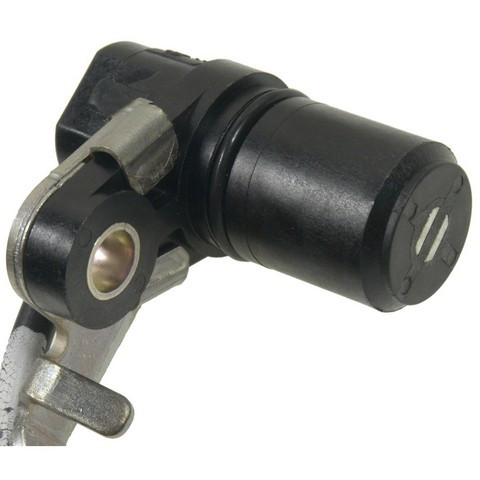

- Connector: Rectangular, male, sealed, quantity 1
- Terminals: 2 female blade terminals
- Condition: New
- Country of origin: Japan
In the box
One ABS wheel speed sensor with its harness. Mounting hardware is not included, so plan on new bolts.
Interchange: ABS1354 · ABSD30978 · 531755 · 8954620120
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS1354, ABSD30978, 531755, ALS1244, 8954620120
Frequently Asked Questions
Is the Standard Ignition ALS1244 sensor right for the 1996-1999 Toyota Celica?
Yes. Standard Ignition ALS1244 is the rear left ABS wheel speed sensor for the 1996-1999 Toyota Celica, and that position takes one sensor.
Does the ALS1244 sensor come with mounting bolts?
No. Standard Ignition ALS1244 comes with its harness but no mounting hardware, so plan on new bolts. The harness carries location grommets and wire clips.
What connector does this Standard Ignition ABS wheel speed sensor use?
It has one sealed rectangular male connector with two female blade terminals. The harness is 26.5 in (673 mm) long.
Can a bad rear left wheel speed sensor turn on the ABS light?
Yes, a damaged sensor or harness can light the ABS warning light, though wiring or other ABS parts can too. A shop can read the stored codes.
Does Standard Ignition ALS1244 replace ABS1354?
Yes. ABS1354 is one of the numbers this sensor replaces, along with ABSD30978, 531755 and 8954620120.
