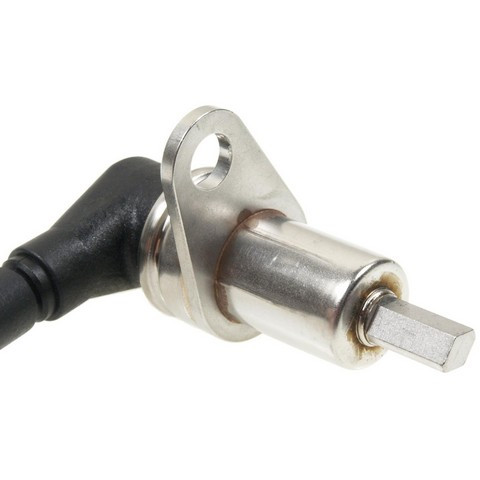

Standard Ignition ALS1325 rear left ABS wheel speed sensor for the 1990-1994 Nissan Sentra and other vehicles reads wheel rotation and sends that signal to the ABS.
- Synthetic material made to withstand harsh operating conditions
- Harness carries grommets and wire clips for mounting and routing
- Tested on vehicles for correct integration with electronic safety systems

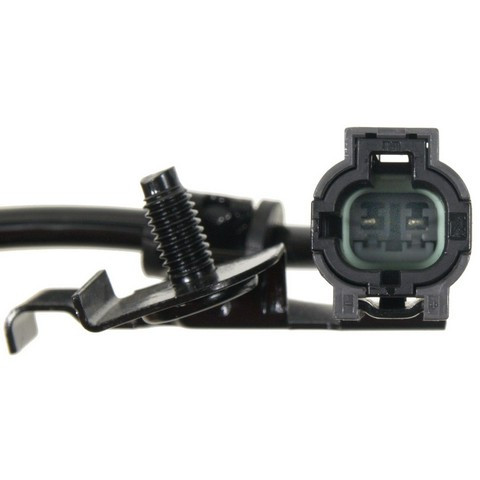

- Sealed rectangular female connector with two male blade terminals
Quick facts
- Part: Standard Ignition ALS1325 ABS wheel speed sensor
- Fits: 1990-1994 Nissan Sentra and other vehicles
- Position: Rear left
- Condition: New
An ABS warning light can mean the sensor or its wiring has failed. If a failed sensor is the cause, this one replaces it. Before you buy, look over the visible harness and connector with the engine off for cracks, chafing or corrosion, because a damaged lead or plug can set off the same light.
Fits
It fits the 1990-1994 Nissan Sentra and the 1991-1993 Nissan NX, and it is engineered specifically for Nissan vehicles. This listing is one sensor for the rear left wheel. The 1990-1994 Nissan Sentra takes one rear left sensor, and the rear right is a separate part ordered on its own.
Specifications
Fit and size
- Position: rear left
- Quantity per vehicle: 1
- Mounting location: wheel, 2 bolt holes
- Harness length: 25 in (635 mm)
Build and materials
- Connector: rectangular, female, 1 connector
- Terminals: 2 male blade terminals
- Condition: New
- Country of origin: Japan
In the box
One ABS wheel speed sensor with its harness, grommets and wire clips. Mounting hardware is not included, and the old bolts may not be reusable, so plan on new ones.
Interchange: ABS1435 · ABSD30898 · 530162 · 4790158Y00
This part cross-references / interchanges with the following part numbers:
ABS1435, ABSD30898, 530162, 4790158Y00, ALS1325
Frequently Asked Questions
Does the Standard Ignition ALS1325 fit a 1991-1993 Nissan NX?
Yes. Standard Ignition ALS1325 is a rear left ABS wheel speed sensor listed for the 1991-1993 Nissan NX as well as the 1990-1994 Nissan Sentra.
Is the Standard Ignition ABS wheel speed sensor sold as one piece or a pair?
This Standard Ignition ALS1325 is one sensor, for the rear left wheel. The rear right sensor is a separate part and is ordered on its own.
Do bolts come with the ALS1325 wheel speed sensor?
No. Mounting hardware is not included, so plan on new bolts for the two bolt holes. The harness does carry grommets and wire clips for mounting and routing.
How long is the harness on this rear left ABS sensor?
The harness is 25 inches (635 mm) long. It ends in a rectangular female connector with two male blade terminals.
Does the ALS1325 replace ABS1435?
Yes. ABS1435 is listed as an interchange number for this sensor, along with ABSD30898, 530162 and 4790158Y00.
