Standard Ignition ABS Wheel Speed Sensor P/N:ALS3168
Standard Ignition ALS2654 rear right ABS wheel speed sensor for the 2012-2017 Hyundai Accent reports wheel rotation speed to the ABS.
An ABS warning light can come from the sensor, but a damaged harness, a loose connector or debris on the sensor can light it too. Before you replace the sensor, rule out those with the engine off and the car parked.
This sensor fits the 2012-2017 Hyundai Accent and is engineered specifically for that make.
Fit and size
Build and materials
One ABS wheel speed sensor. This listing is one sensor for the rear right wheel, and that side takes one; the rear left is a separate part, ordered separately.
Does the Standard Ignition ALS2654 fit a 2012-2017 Hyundai Accent?
Yes. Standard Ignition ALS2654 is the rear right ABS wheel speed sensor for the 2012-2017 Hyundai Accent.
Do the clips and grommets come on the harness of this rear right ABS sensor?

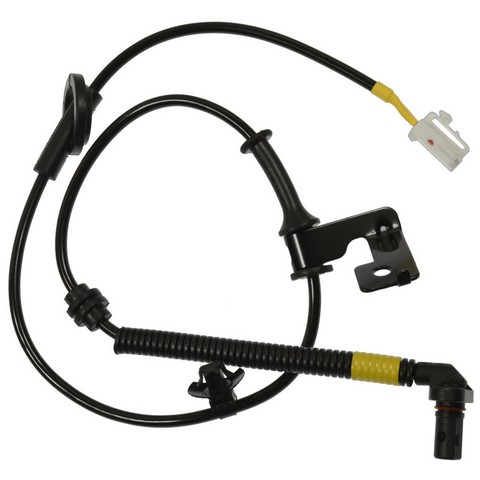

Yes. The harness includes OE location grommets and wire clips for mounting and routing, which saves the installer time.
How long is the harness on the ALS2654 sensor?
The harness measures 32.75 in (830 mm) and ends in one rectangular connector.
Is the connector on this ABS sensor sealed?
Yes. It uses a sealed connector with two female blade terminals, made for protection in harsh conditions.
How does this Standard Ignition ABS wheel speed sensor mount at the wheel?

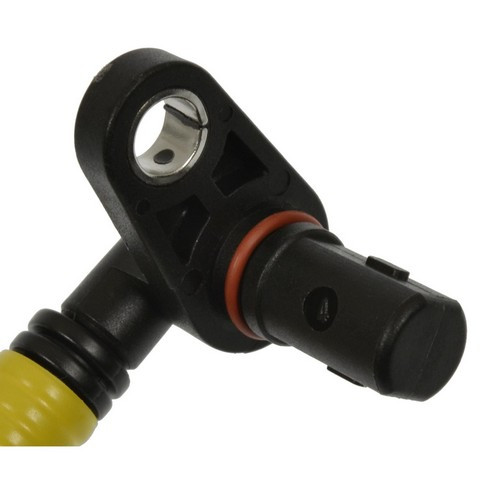

Standard Ignition ALS2654 is a bolt-mount sensor with one bolt hole, installed at the wheel.
