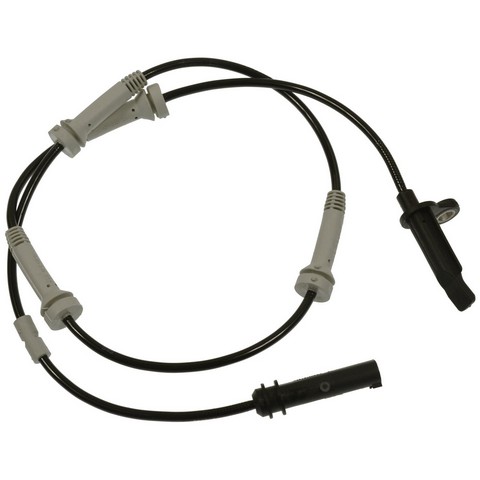

Standard Ignition ALS3137 rear ABS wheel speed sensor for the 2018-2023 BMW 530e and other vehicles senses wheel speed for the ABS. It is engineered specifically for BMW vehicles.
- Synthetic material made to withstand harsh operating conditions
- Grommets and wire clips on the harness for correct mounting and routing
- Engineered for precision performance and a long service life
- Tested on vehicles for correct integration with electronic safety systems
- Sealed connector for protection in harsh conditions
Quick facts
- Part: Standard Ignition ALS3137 ABS wheel speed sensor
- Fits: 2018-2023 BMW 530e and other vehicles
- Position: Rear
- Material: Synthetic
- Condition: New
A lit ABS or traction control warning light can mean a wheel speed sensor has failed or its wiring is damaged. These signs alone do not prove the sensor is the problem, since a damaged tone ring is another common cause.
Fits
This sensor is a direct-fit replacement for the 2017-2023 BMW 530i and the 2017-2023 BMW 530i xDrive, as well as the 2018-2023 BMW 530e. The rear axle takes two sensors, one per wheel, and this listing is a single sensor. If your BMW is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Mounting location: Spindle
- Mounting: bolt mount, 1 bolt hole
- Harness length: 33.75 in (857.25 mm)
Build and materials
- Material: Synthetic
- Connector: 1 oval, female
- Terminals: 2, male pin
- Attachment method: direct, snap fit
- Condition: New
- Country of origin: United States
In the box
One ABS wheel speed sensor with its wiring harness, grommets and wire clips. Mounting hardware, a mounting bracket and a dust shield are not included, so plan on new mounting hardware.
Interchange: 34526859584 · 34526874638 · ABS3137 · ABSD31107 · 533508
This part cross-references / interchanges with the following part numbers:
34526859584, 34526874638, ABS3137, ABSD31107, 533508, ALS3137
Frequently Asked Questions
Is the Standard Ignition ALS3137 sensor right for a 2017-2023 BMW 530i xDrive?
Yes. Standard Ignition ALS3137 is a rear ABS wheel speed sensor and fits the 2017-2023 BMW 530i xDrive.
Does the ALS3137 sensor come with its wiring harness and a mounting bolt?
Standard Ignition ALS3137 includes the wiring harness with grommets and wire clips. Mounting hardware, a mounting bracket and a dust shield are not included.
How long is the harness on this rear wheel speed sensor?

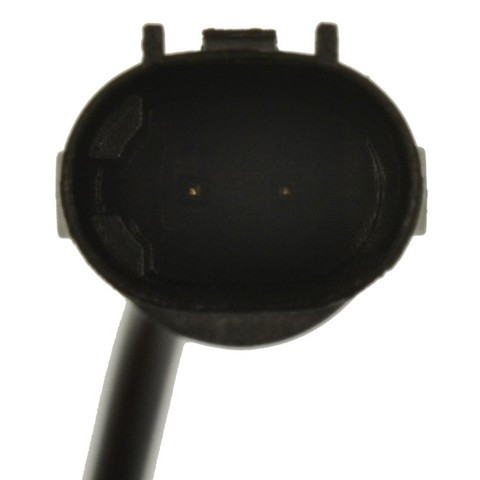

The wiring harness is 33.75 in (857.25 mm) long. It ends in one female oval connector with two male pin terminals.
Can a bad rear wheel speed sensor turn on the ABS light?
It can. A lit ABS or traction control warning may come from a failed sensor, and a shop can test the sensor circuit to find out.
Is the connector on the Standard Ignition ALS3137 sealed?
Yes. Standard Ignition ALS3137 uses a sealed connector for protection in harsh conditions, and the connector is a female oval type.
