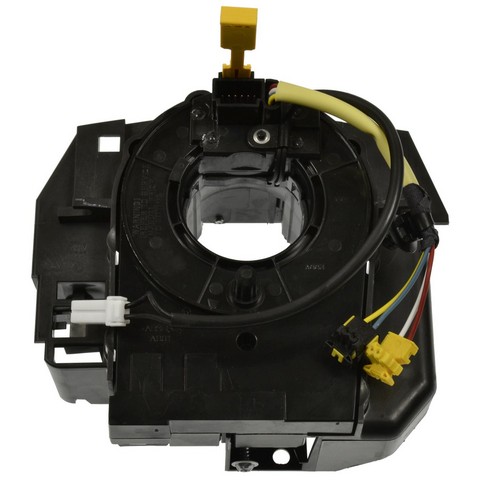

Standard Ignition CSP244 air bag clockspring with steering angle sensor for the 2011-2012 Ram 1500 and other vehicles carries the airbag and steering wheel circuits as the wheel turns. The built-in steering angle sensor reports the steering wheel's position to the truck's control modules.
- Copper alloy conductors carry current with low resistive losses
- Design and high-grade materials made to meet the demands of today's service professional
- Eight rectangular plug and socket connectors with 28 pin and blade terminals
- Six wires with an 8 in (203.2 mm) wire length
- Clockspring rated for a 12 volt electrical system
Quick facts
- Part: Standard Ignition CSP244 air bag clockspring with steering angle sensor
- Fits: 2011-2012 Ram 1500 and other vehicles
An airbag warning light, a horn or steering wheel buttons that stop working, or a stability control light can mean this clockspring has worn out, though a damaged wiring connector or a faulty airbag control module can be behind the same warnings. Airbag parts call for care, so leave testing the airbag system to a shop.
Fits
The 2011-2012 Ram 1500, the 2012 Ram 2500 and the 2009-2010 Dodge Ram 1500 each take one, and this clockspring fits them along with other Ram trucks. It is made to OE spec for proper fit, form and function. If your truck is not named here, open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Connectors: 8, rectangular, plug and socket, female and male
- Terminals: 28, pin and blade, female and male
- Wires: 6
- Wire length: 8 in (203.2 mm)
- Voltage: 12 V
Build and materials
- Type: clockspring with built-in steering angle sensor
- Conductors: copper alloy
- Finish: plastic
- Country of origin: Mexico
In the box
One air bag clockspring with steering angle sensor and a screw.
Interchange: CLS345 · 68050846AA · 68050846AB · ACSC20053 · CPI444
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
CLS345, 68050846AA, 68050846AB, ACSC20053, CPI444
Frequently Asked Questions
Does the Standard Ignition CSP244 clockspring fit a 2012 Ram 2500?
Yes, the Standard Ignition CSP244 air bag clockspring with steering angle sensor fits the 2012 Ram 2500, which takes one. If you drive a different truck, open the "Vehicles it fits" section to check your exact model.
Is the steering angle sensor built into this clockspring?
Yes. The Standard Ignition CSP244 has the steering angle sensor built in, so one part carries the airbag and steering wheel circuits and reports the wheel's position.
How many connectors and terminals are on this air bag clockspring?
This air bag clockspring has 8 rectangular connectors and 28 terminals in pin and blade styles, with 6 wires and a 12 volt rating.
Can a dead horn point to a worn air bag clockspring?
Yes, it can. A horn that stops working, an airbag warning light or steering wheel buttons that no longer respond can mean this clockspring has failed, and a shop can test the airbag system.
Does this clockspring come with a screw?
Yes. This listing holds one air bag clockspring with steering angle sensor and a screw.
