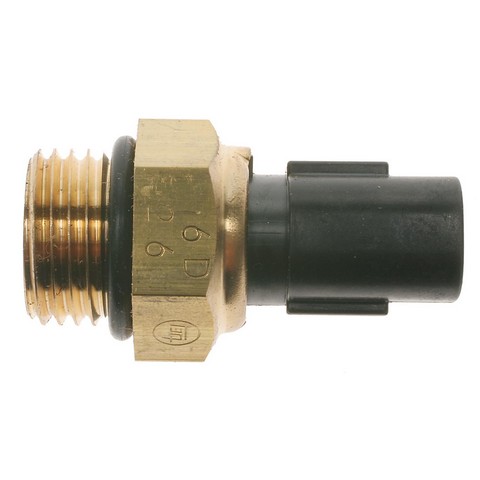

Standard Ignition TS-421 auto trans oil temperature sensor for the 1996-2000 Toyota RAV4 reads the temperature of the automatic transmission fluid. It turns that reading into an electrical signal.
- Plastic and brass construction with a brass contact terminal
- Male blade terminal with a female plug-in connector
- Screw-on attachment with a straight bend angle
- 12 volt electrical rating
- One O-ring included
Quick facts
- Part: Standard Ignition TS-421 auto trans oil temperature sensor
- Fits: 1996-2000 Toyota RAV4
- Material: Plastic and brass
- Condition: New
A worn wiring connection, a damaged connector or a fault inside the transmission can be behind a transmission temperature warning light or shifting that changes for no clear reason, so find the cause before buying a sensor. If this sensor is the cause, this part replaces it.
Fits
This sensor fits the 1996-2000 Toyota RAV4, which takes one. The listing is one sensor.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 1.48 in
- Voltage: 12 V
- Attachment method: screw on
- Bend angle: straight
Build and materials
- Material: plastic and brass
- Contact terminal material: brass
- Terminal: blade, male
- Connector: plug-in, female
- Condition: new
- Country of origin: Japan
In the box
One auto trans oil temperature sensor and one O-ring. A wiring harness, dust shield and splice connectors are not included.
Interchange: WT766 · SW5051 · TS6166 · 8942812140
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
WT766, SW5051, TS6166, TS-421, 8942812140
Frequently Asked Questions
Is the Standard Ignition TS-421 sensor right for a 1996-2000 Toyota RAV4?
Yes. Standard Ignition TS-421 is listed for the 1996-2000 Toyota RAV4, and that vehicle takes one sensor.
Does the TS-421 auto trans oil temperature sensor come with an O-ring?
Yes, one O-ring comes with the sensor. A wiring harness, dust shield and splice connectors are not included.
What is this auto trans oil temperature sensor made of?
The Standard Ignition TS-421 is made of plastic and brass, and its contact terminal is brass. It has a male blade terminal and a female plug-in connector.
What can a failing auto trans oil temperature sensor cause?
A transmission temperature warning light or unexpected shifting can be signs. A shop can test the sensor and its wiring.
Is 8942812140 an interchange number for the Standard Ignition TS-421?
Yes. 8942812140 is listed as an interchange number for the Standard Ignition TS-421, along with WT766, SW5051 and TS6166.
