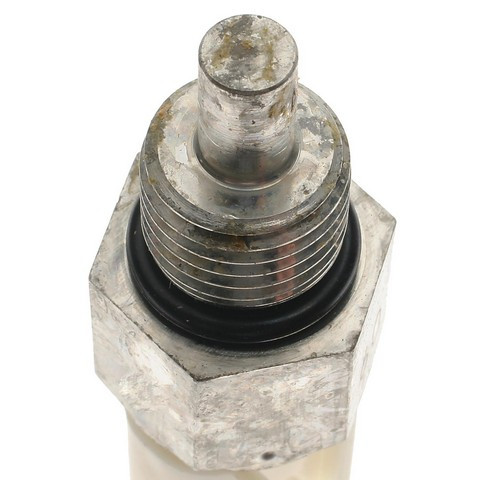

Standard Ignition TS-415 auto trans oil temperature sensor for the 1998-2004 Toyota Sienna and other vehicles senses the temperature of the transmission oil and sends an electrical signal.
- Copper contact terminals
- Two male blade terminals
- Oval, female plug-in connector
- Screw-on attachment
- 12-volt sensor, 2.25 inches long
Quick facts
- Part: Standard Ignition TS-415 auto trans oil temperature sensor
- Fits: 1998-2004 Toyota Sienna and other vehicles
- Material: Plastic, metal
- Condition: New
A failing auto trans oil temperature sensor can bring on a transmission warning light or shifting that feels off, though other faults can trigger those too. Before you replace the sensor, rule out a damaged connector or wiring at the plug, since a poor connection can look like a bad sensor.
Fits
The 2001-2004 Toyota Sequoia and the 1998-2004 Lexus LX470 also take this sensor, one per vehicle. If your Toyota or Lexus is not named here, look it up in the "Vehicles it fits" section. This listing is a single sensor.
Specifications
Fit and size
- Quantity per vehicle: 1
- Length: 2.25 in
- Voltage: 12 V
- Terminals: 2, male blade
- Connector: 1, oval, female, plug-in
- Attachment: screw on, straight bend angle
Build and materials
- Material: plastic, metal
- Contact terminal material: copper
- Water resistant: no; weatherproof sealed: no
- Condition: new
- Country of origin: Japan
In the box
One auto trans oil temperature sensor. A wiring harness, splice connectors and a dust shield are not included.
Interchange: WT5063 · SU7222 · TS5611 · 8942930010 · 8942934010
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
WT5063, SU7222, TS5611, TS-415, 8942930010, 8942934010
Frequently Asked Questions
Is the Standard Ignition TS-415 the right sensor for a 2001-2004 Toyota Sequoia?
Yes. Standard Ignition TS-415 is listed for the 2001-2004 Toyota Sequoia, and that vehicle takes one sensor.
Does the TS-415 come with a wiring harness?
No. This listing is one auto trans oil temperature sensor; the wiring harness, splice connectors and dust shield are not included.
What connector and terminals does the Standard Ignition TS-415 have?
Standard Ignition TS-415 has one oval, female plug-in connector and two male blade terminals, with copper contact terminals.
Is this auto trans oil temperature sensor water resistant?
No. The catalog lists this sensor as neither water resistant nor weatherproof sealed.
Can I use the TS-415 in place of number 8942930010?
Yes. 8942930010 is one of the numbers cross-referenced to this sensor, so the TS-415 is listed as its replacement.
