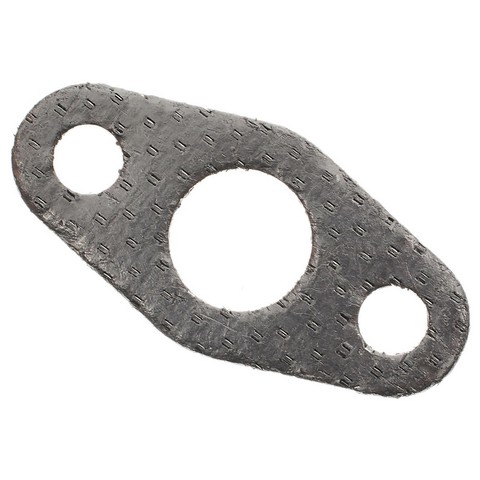

Help seal the connection between your EGR valve and its mounting surface with the Standard Ignition EGR Valve Gasket VG83. This EGR valve mounting gasket is a direct-fit replacement for the listed applications: the 1990 Dodge Dakota (L4-2.5L), 1991 Toyota 4Runner (L4-2.4L), 1993-1996 Jeep Grand Cherokee (V8-5.2L), 1993 Jeep Grand Wagoneer (V8-5.2L), and 1994-1996 Jeep Grand Cherokee (L6-4.0L).
The gasket sits between the EGR valve and its mounting surface and seals the joint around the valve's port. It is designed to help keep recirculated exhaust gas from leaking at the flange.
- Material: Metal construction.
- Dimensions: Two bolt holes and a single port. Inner diameter is 0.7 in (17.79 mm), thickness is 3/64 in (1.27 mm), length is 2.43 in (61.722 mm), and width is 1.19 in (30.226 mm).
- Quality control: Standard is a global manufacturer of emission components and maintains quality control throughout production, from componentry to the finished product.
- Design: Standard's EGR products are built around feature-rich design and componentry.
Each package holds one EGR valve gasket, and the listed applications use one. A pipe gasket is not included. Country of origin: United States.
Signs this gasket may need replacing include soot or leakage around the EGR valve flange, or a ticking sound near the valve. If a failed gasket is the source of the leak, this part replaces it. The gasket is also commonly renewed whenever the EGR valve is removed. Follow the vehicle service information for the procedure.
Interchange: 53010000
