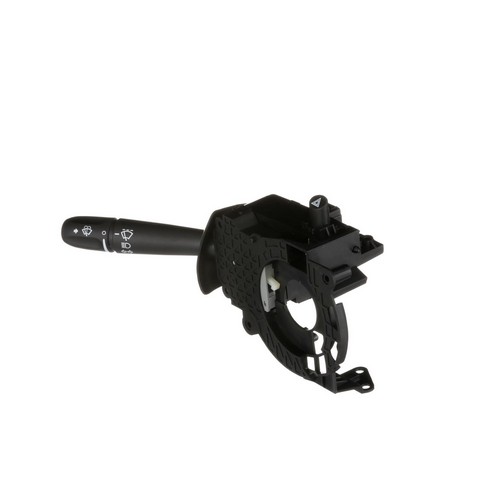

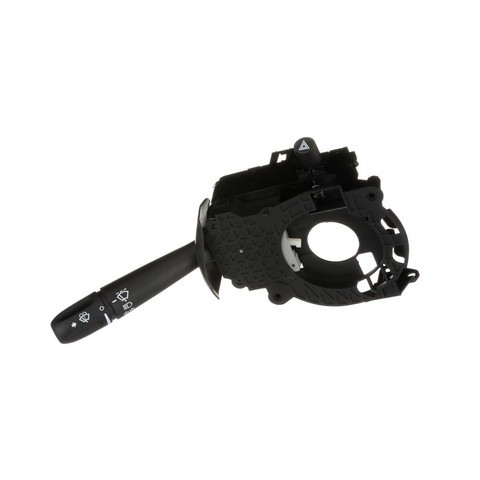

Standard Ignition CBS-1338 windshield wiper switch for the 2002-2008 Dodge Ram 1500 and other vehicles controls the wipers, headlights and turn signals from one steering column lever. The same lever also triggers washer spray and the high beam flasher.
- Column-mounted lever switch for headlights, turn signals and windshield wipers
- Copper alloy conductors with low resistive losses
- Tested for both mechanical and electrical switching performance
- Three wiper speed settings, with windshield washer spray control
- Momentary high beam flasher and latching high beam operator
Quick facts
- Part: Standard Ignition CBS-1338 windshield wiper switch
- Fits: the 2002-2008 Dodge Ram 1500 and other vehicles
- Condition: New
Wipers that skip a speed, turn signals or headlights that do not respond, or a lever that feels loose can mean the switch is worn. A blown fuse, a tired wiper motor or a burned-out bulb can be behind those problems too, so find the cause before you buy a new switch.
Fits
This switch is listed for a wide range of Chrysler, Dodge, Mitsubishi and Ram models, including the 2002-2008 Dodge Ram 1500, the 2003-2009 Dodge Ram 2500 and the 2005-2010 Dodge Dakota, and each takes one. If your truck or SUV is not named here, look for it in the "Vehicles it fits" section on this page.
Specifications
Fit and size
- Quantity per vehicle: 1
- Attachment method: bolt on
- Voltage: 12 V
- Connector: 1 rectangular female connector, 1 cavity
- Terminals: 4 male blade terminals
- Wiper speed settings: 3
Build and materials
- Condition: New
- Conductors: copper alloy
- Indicator markings: included
- Country of origin: Taiwan
Interchange: S14541 · 56045165AB · 56045515AA · 56049823AA · 56049823AB · SW3998 · DL6745 · DL6745SB · TSS84 · CBS1338T
This part cross-references / interchanges with the following part numbers:
S14541, 56045165AB, 56045515AA, 56049823AA, 56049823AB, SW3998, DL6745, DL6745SB, TSS84, CBS1338T
Frequently Asked Questions
Does this Dakota switch fit a 2005-2010 Dodge Dakota?
Yes. Standard Ignition CBS-1338 is listed for the 2005-2010 Dodge Dakota, and each truck takes one.
What functions does this Standard Ignition switch control?
This column-mounted lever switch controls the headlights, turn signals and windshield wipers. It has three wiper speeds, washer spray and a high beam flasher, but no wiper delay setting.
What connector and terminals does the CBS-1338 switch have?
Standard Ignition CBS-1338 has one rectangular female connector with four male blade terminals. It is a 12 V switch with a bolt-on attachment method.
How can I tell a column wiper switch is going bad?
Wipers that skip a speed, turn signals or headlights that do not respond, or a lever that feels loose can all mean a worn switch. A shop can test the switch itself.
Is 56049823AB the same switch as the CBS-1338?
Yes. 56049823AB is one of the numbers this switch replaces, as shown on the Interchange line of this page.
