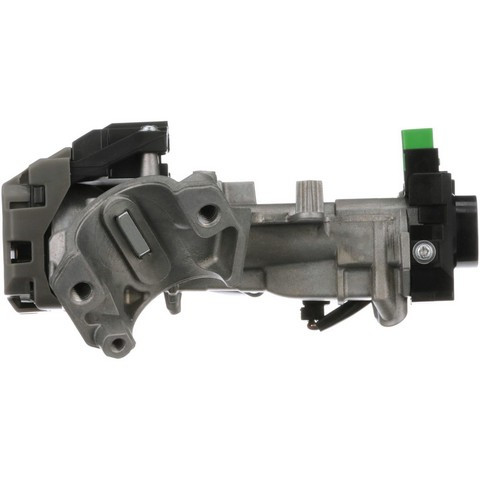

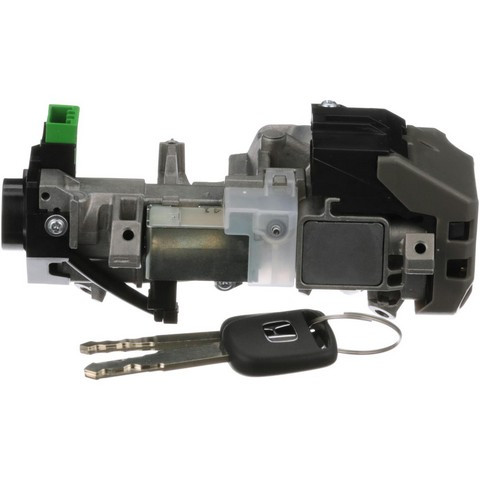

Standard Ignition US-966 switch for the 2006-2009 Honda Civic combines the ignition switch and the lock cylinder in one column-mounted assembly. The Standard Ignition switch passes power to the car's circuits when the key is turned.
- Ignition switch and lock cylinder supplied as one assembly for steering column mounting
- Coded lock cylinder with two keys included
- Mounting bracket included with the assembly
- Two connectors with 11 terminals, blade and pin type
- Extensively tested for reliability
Quick facts
- Part: Standard Ignition US-966 switch
- Fits: 2006-2009 Honda Civic
- Condition: New
A key that sticks or turns hard, a key that will not come out, or accessories that cut out can be signs of a worn ignition switch or lock cylinder. A worn or bent key can cause similar trouble, so with the engine off, look the key over and try your spare before you replace anything.
Fits
This switch is a direct-fit OE replacement for the 2006-2009 Honda Civic.
Specifications
Fit and size
- Mounting location: column
- Quantity per vehicle: 1
- Connector quantity: 2
- Terminal quantity: 11
- Key quantity: 2
Build and materials
- Type: ignition switch with lock cylinder, coded
- Terminal type: blade and pin, male
- Connector gender: female
- Mounting bracket: included
- Condition: New
- Country of origin: Taiwan
In the box
One ignition switch and lock cylinder assembly with two keys and a mounting bracket. This listing holds one assembly, and the 2006-2009 Honda Civic takes one. Mounting hardware and instructions are not included, so plan on new fasteners rather than reusing the old ones.
Interchange: CS1326 · KS7326 · 35100SND931 · LA10084
This part cross-references / interchanges with the following part numbers:
CS1326, KS7326, 35100SND931, LA10084, US-966
Frequently Asked Questions
Is the Standard Ignition US-966 the right Honda Civic switch for the 2006-2009 model years?
Yes. Standard Ignition US-966 is a direct-fit OE replacement for the 2006-2009 Honda Civic.
Does the US-966 ignition switch come with mounting bolts?
No. Mounting hardware and instructions are not included, though a mounting bracket is, so plan on new fasteners instead of reusing the old ones.
How many terminals does the Standard Ignition US-966 ignition switch have?
Standard Ignition US-966 has 11 male blade and pin terminals spread across two female connectors.
Can a worn ignition switch make dash lights or accessories cut out?
Yes. A worn ignition switch can do this because it passes power to the car's circuits when the key is turned, but other faults can produce these symptoms too, so a shop can test it.
Does the US-966 ignition lock cylinder come with keys?
Yes. Standard Ignition US-966 includes two keys, and the lock cylinder is coded.
