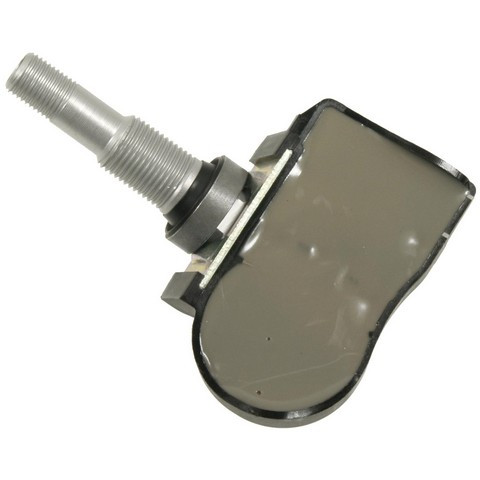

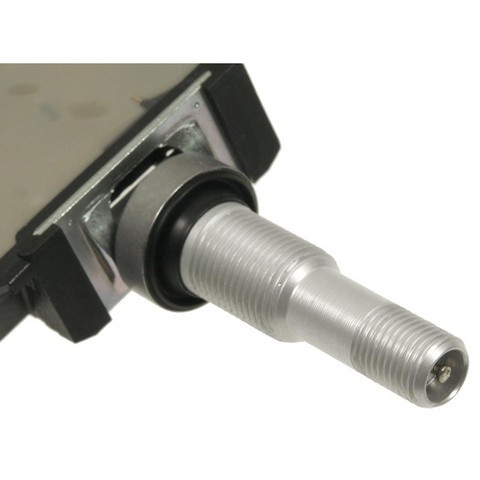

Tire Pressure Monitoring System (TPMS) Sensor for 2009-2015 Mazda MX-5 Miata & More - Standard Ignition TPM143

Standard Ignition TPM143 tire pressure monitoring system (tpms) sensor for the 2009-2015 Mazda MX-5 Miata and other vehicles reports the tire's air pressure to the car by radio.

• Designed and manufactured in compliance with all SAE2657 specifications
• Pre-programmed at the factory, so it is ready to install and relearn out of the box
• Transmits on a frequency of 433 MHz
• Battery-powered, with a Lithium Manganese Dioxide (Li-MnO2) battery
• Bolt-on connector type, mounted at the wheel

Quick facts

• Part: Standard Ignition TPM143 tire pressure monitoring system (tpms) sensor
• Fits: 2009-2015 Mazda MX-5 Miata and other vehicles
• Condition: New

A TPMS warning light that stays on, or a wheel that shows no pressure reading, can mean a sensor has stopped reporting. Before you replace it, rule out a tire that is simply low on air and a sensor that was not relearned after tire work. This listing is one sensor, and the car takes four, one at each wheel.

Fits

It is a direct OE replacement for the 2009-2015 Mazda MX-5 Miata and the 2009-2014 Mazda MX-5, matching OE fit, form and function.

Specifications

Installation notes

• Tighten the sensor nut to 71 in/lbs.
• Relearn the sensor to the vehicle after installing it.

Interchange: 92-1252
BBP337140 · BBP337140A · BBP337140B · BHB637140 · BHB637140A · GS1D37140
