Tighten up worn, sloppy steering with the MOOG Chassis Steering Tie Rod End ES3540 — a front outer tie rod that installs as a direct-fit replacement for the 2000-2001 Dodge Ram 1500, 2000-2002 Dodge Ram 2500, and 2000-2002 Dodge Ram 3500. Also cataloged under the QuickSteer number ES3540, it's designed for OE fit and function, so if a failed original outer tie rod end is the cause of your loose or wandering steering, this replaces it. See the "Vehicles it fits" section for engine-level fitment.
- Greaseable socket: lets you flush fresh lubricant through to push out contaminants, helping reduce corrosion and wear.
- Pressed-in cover plate & premium boot: seal out debris and help minimize looseness, reducing bearing wear.
- Forged alloy steel with heat-treated ball studs: studs are heat treated to match or exceed OE requirements for improved fatigue strength.

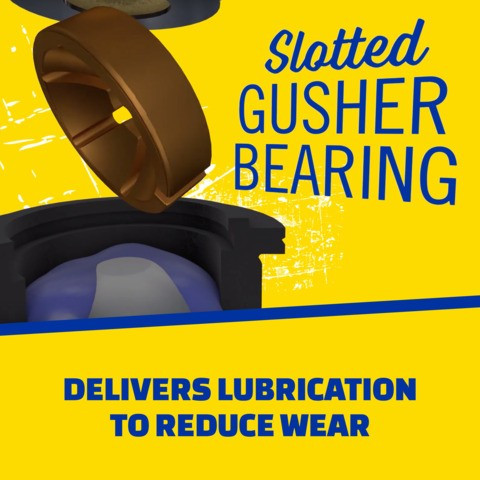

- Belleville preload washer & Gusher Bearing: the preload washer helps keep the bearing package tight as bearings wear, while the metal-to-metal Gusher Bearing lets grease flow through the bearing surface for reduced friction.
Precision tolerances are intended for straightforward installation and steering alignment. A replacement outer tie rod end helps restore vehicle handling on the listed applications.
Interchange: 612.67038 · 534-639 · 269-3228 · 401-1891 · 401-1891B
61267038 · 534639 · 2693228 · 4011891 · 4011891B · 45A0891 · 46A0891A · 61367038 · 5017670AA · TA2196 · T3540RD · T3540PR · DG4011891 · T3540 · ES3540E · GES3540 · MES3540 · JTE1297
This part cross-references / interchanges with the following part numbers:
45A0891, 46A0891A, 612.67038, 61367038, 5017670AA, TA2196, 534-639, T3540RD, T3540PR, ES3540, DG4011891, T3540, ES3540E, GES3540, MES3540, 269-3228, 401-1891, 401-1891B, JTE1297
Frequently Asked Questions
Is this MOOG ES3540 the right tie rod end for a 2000-2001 Dodge Ram 1500?
Yes. The ES3540 is a front outer tie rod end cataloged for the 2000-2001 Dodge Ram 1500, plus the 2000-2002 Dodge Ram 2500 and 3500. Confirm your vehicle in the "Vehicles it fits" section.
Is this a front outer or inner tie rod end?
The catalog lists the ES3540 as a front outer tie rod end for the applications shown.
Can this tie rod end be greased?
Yes. It uses a greaseable socket, which lets you flush new lubricant through the joint to push out contaminants and help reduce corrosion and wear.
What is it made of?
It's made of forged alloy steel, and the ball studs are heat treated to match or exceed OE requirements to help improve fatigue strength.
Why is my steering loose or wandering?
A worn outer tie rod end is one possible cause of loose or wandering steering, but other components can be involved. Have the cause diagnosed; if the outer tie rod end is at fault, this replaces it.
