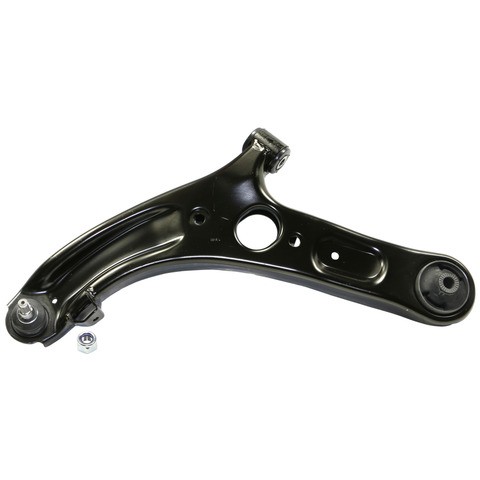

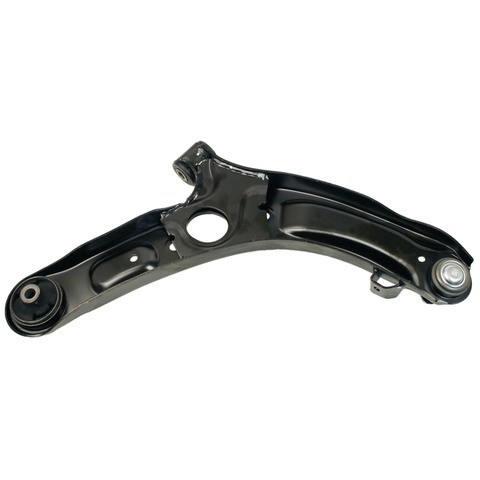

MOOG RK622232 front left lower control arm with ball joint for the 2011-2016 Hyundai Elantra and other vehicles links the wheel to the chassis. This MOOG lower control arm, also called a control arm and ball joint assembly, is a single unit that pivots with the front left suspension.
- Precision tolerances for easy installation and steering alignment
- Rubber bushings optimized for quiet operation and resistance to wear, salt, road grime and oils
- Pre-installed ball joint with a sealed socket for maintenance-free operation
- Ball stud shape built for fatigue life
- Heat treated to inhibit premature failure
- Coated studs and an e-coated control arm inhibit premature deterioration
Quick facts
- Part: MOOG RK622232 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2011-2016 Hyundai Elantra and other vehicles
- Position: Front left lower
- Material: Stamped steel control arm, rubber bushings
- Condition: New
A worn arm can show up as a clunk over bumps, uneven tire wear or loose, wandering steering. Sway bar links, struts, tie rod ends and wheel bearings can be behind those signs too, so find the cause before buying.
Fits
The fitment spans a wide range of Hyundai models, led by the 2011-2016 Hyundai Elantra, the 2013-2017 Hyundai Elantra GT and the 2012-2017 Hyundai Veloster. Open the "Vehicles it fits" section to check your exact model and engine. This listing is one arm for the front left; the front right is a separate part, and both sides of the axle are normally replaced together. The 2013-2017 Hyundai Elantra GT takes one arm on the front left.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1 (this side)
- Control arm maximum length: 14.440 in
- Ball joint mounting type: Press in
- Ball joint stud type: Threaded
Build and materials
- Control arm material: Stamped steel
- Bushing material: Rubber
- Bushings and ball joint: Included
- Adjustable: No
- Condition: New
- Country of origin: Turkey
In the box
One control arm with the ball joint and rubber bushings.
Interchange: 102-7582 · 520-379 · 522-823
45D10717 · 1027805 · TC2737 · CB60303PR · CB60423PR · CA16360 · 545002V000 · 545003X000 · 545003X700 · 545003Y000 · 5CB901142 · CB60303 · CMS861116 · CMS901104 · JTC2744
This part cross-references / interchanges with the following part numbers:
45D10717, 102-7582, 1027805, TC2737, 520-379, 522-823, CB60303PR, CB60423PR, CA16360, 545002V000, 545003X000, 545003X700, 545003Y000, 5CB901142, CB60303, CMS861116, CMS901104, JTC2744
Frequently Asked Questions
Is MOOG RK622232 the right Hyundai Elantra control arm for a 2011-2016 Hyundai Elantra?
Yes. MOOG RK622232 is a front left lower arm for the 2011-2016 Hyundai Elantra. Open the "Vehicles it fits" section to check your exact model and engine.
Does RK622232 include a MOOG control arm bushing and ball joint?
Yes. MOOG RK622232 includes rubber bushings and the ball joint, and the ball joint comes pre-installed in the arm.
What material is the MOOG lower control arm bushing on RK622232?
The bushings are rubber, and the arm itself is stamped steel. Both come with the assembly.
What can a worn front left lower control arm feel like while driving?
A clunk over bumps, vibration or pulling can go with worn bushings or a worn ball joint. A shop can check the arm for play.
Is this MOOG control arm adjustable?
No. RK622232 is not adjustable; its precision tolerances are meant for easy installation and steering alignment.
