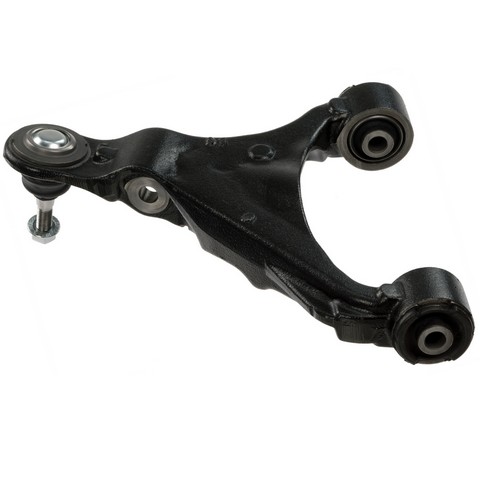

Delphi TC3026 front left upper control arm with ball joint for the 2010-2015 Land Rover LR4 and other vehicles locates the front left wheel and pivots as the suspension moves. The ball joint comes attached, so one control arm and ball joint assembly replaces both parts.
A clunk over bumps, loose steering or uneven front tire wear can mean the ball joint or arm is worn. Before you replace the arm, have a shop rule out the shocks, bushings and wheel alignment, since those produce similar noises and tire wear.
It fits the 2010-2015 Land Rover LR4, the 2006-2013 Land Rover Range Rover Sport and the 2009 Land Rover LR3. This listing is one side of the front axle; the upper arm on the other side is a separate part and is normally replaced at the same time.
Fit and size
Build and materials
One control arm with ball joint. The front left position takes one.
Interchange: 102-7835 · 102-7861 · 524-069 · RBJ 500850
520769 · CB35017 · CB35017PR · CB35047 · CB35047PR · RK622881 · CMS101420 · LR051618 · LR074838 · RBJ500790 · JTC3656
This part cross-references / interchanges with the following part numbers:
Is the Delphi TC3026 control arm right for a 2006-2013 Land Rover Range Rover Sport?
Yes. Delphi TC3026 fits the 2006-2013 Land Rover Range Rover Sport as the front left upper control arm with ball joint.
Does this front left upper control arm come with the ball joint?
Yes. The ball joint is part of this control arm, so the listing is one front left upper unit with the joint already attached.
How are the ball studs on this Delphi control arm made?
Delphi machines the ball studs to micron tolerances, which is aimed at durability and smooth operation of the joint.
What testing does this control arm go through?
Delphi tests these parts below -40 °C and above 120 °C and exposes them to 720 hours of salt spray. Each control arm also gets crack and ultrasonic flaw detection.
Can I use Delphi TC3026 where my old arm was numbered 520769?
Yes. Delphi TC3026 is listed as a replacement for 520769, along with the other cross-reference numbers on the Interchange line.
