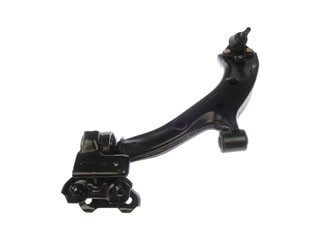

Dorman 521-715 front left lower control arm with ball joint for the 2007-2011 Honda CR-V links the wheel to the body and lets the suspension move. This Dorman control arm replaces the arm, ball joint and bushings as one piece.
- Dorman OE Solutions line, standard replacement grade
- Tested for a smooth, stable ride with directional stability and predictable dynamics
- Ball joint and bushings come pre-installed, and the part is pre-greased, to save time and labor
- Additional coatings for rust and corrosion resistance
- Steel control arm with rubber bushings
- Threaded ball joint stud with a 14 mm thread diameter
Quick facts
- Part: Dorman 521-715 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2007-2011 Honda CR-V
- Position: Front left lower
- Material: Steel
- Condition: New
A clunk over bumps, a loose steering feel or uneven front tire wear can mean the arm bushings or ball joint are worn. A sway bar link, tie rod end or strut can produce similar signs, so find the cause before you buy.
Fits
This 2007-2011 Honda CR-V control arm is a direct replacement for the original equipment on the front left lower side.
Specifications
Fit and size
- Position: front left lower
- Quantity per vehicle: 1
- Mounting hole diameter: 12 mm
- Maximum width: 288.5 mm
- Maximum length: 237 mm
- Ball joint thread diameter: 14 mm
Build and materials
- Control arm material: steel
- Bushing material: rubber
- Control arm type: casting/forged
- Ball joint stud: threaded
- Grade: standard replacement
- Condition: new
- Country of origin: Turkey
In the box
One front left lower control arm with ball joint, bushings and mounting hardware. A grease fitting is not included. This side takes one; the front right is a separate part ordered on its own, and the two sides are normally replaced together.
Interchange: 102-6006 · 810-257596B · 623.40013
TC2871 · CA14355 · 51360SWAA01 · 51360SWAA20 · 51360SWAE01 · 9CB60086 · RK620500 · GS60109 · CMS60109 · 2605942 · SK521715 · 1509017 · X17CJ1635 · JTC2443
This part cross-references / interchanges with the following part numbers:
102-6006, 810-257596B, 623.40013, TC2871, CA14355, 51360SWAA01, 51360SWAA20, 51360SWAE01, 9CB60086, RK620500, GS60109, CMS60109, 2605942, SK521715, 1509017, X17CJ1635, JTC2443
Frequently Asked Questions
Is this Dorman lower control arm the right one for the 2007-2011 Honda CR-V?
Yes. Dorman 521-715 is the front left lower control arm with ball joint for the 2007-2011 Honda CR-V. The front right side is a separate part.
Do the Dorman control arm bushings come installed?
Yes. The bushings and the ball joint arrive pre-installed on this control arm, and the part is pre-greased. Mounting hardware is included.
Is the Dorman suspension control arm and ball joint assembly made of steel?
Yes. Dorman 521-715 has a steel arm with rubber bushings, and its threaded ball joint stud has a 14 mm thread diameter.
Does Dorman 521-715 replace 51360SWAA01?
Yes. 51360SWAA01 is one of the numbers Dorman 521-715 replaces, along with 51360SWAA20 and 51360SWAE01.
How can I tell the ball joint on a front lower control arm is wearing out?
A clunk over bumps or a loose, wandering steering feel can mean a worn ball joint or bushing. A shop can check the play, so have it looked at promptly.
