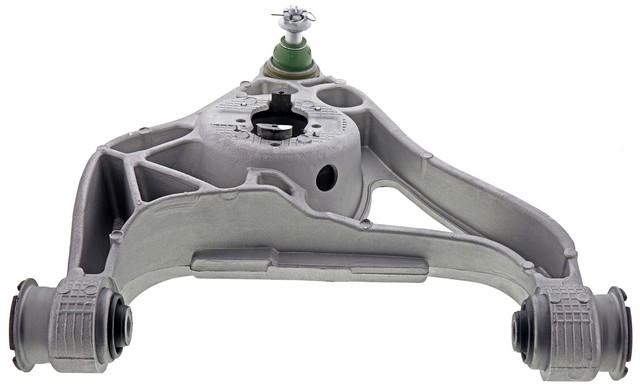

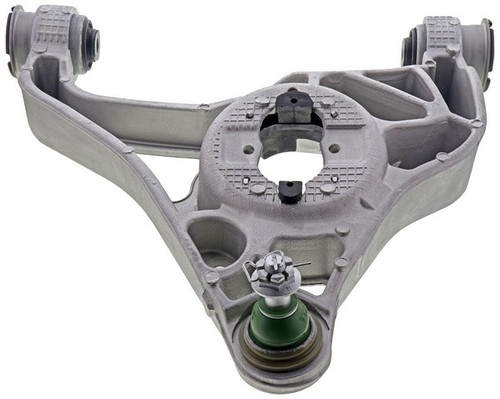

Mevotech TTX CTXMS251151 front right lower control arm with ball joint for the 2013-2018 Ram 1500 and other vehicles links the wheel to the frame. The ball joint is part of the assembly, so one part covers both the arm and the joint.
- Patented sintered bearings made of sintered metal
- Repel-TEK surface treatment on the ball joint resists corrosion
- Integri-Boot design built into the ball joint locks out moisture and contaminants
- 135 degree SAE grease fitting included on the greaseable ball joint
- Rubber bushings with knurling that secures the control arm bushing to the sub-frame
- Ball joint flange designed to resist deformation during installation
Quick facts
- Part: Mevotech TTX CTXMS251151 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2013-2018 Ram 1500 and other vehicles
- Position: Front right lower
- Material: Aluminum
- Condition: New
A worn arm or ball joint can show up as a clunk over bumps, uneven tire wear or loose steering feel, though those signs can also come from other suspension parts. Before replacing it, look at the ball joint boot and the bushings with the engine off for tears, splits or leaking grease.
Fits
This arm fits the 2013-2018 Ram 1500 and the 2019-2024 Ram 1500 Classic. The listing is one arm for the front right; the front left is a separate part, and the two on that axle are normally replaced at the same time.
Specifications
Fit and size
- Position: Front right lower
- Quantity for this side: 1
- Control arm maximum length: 20.25 in
- Control arm maximum width: 20.45 in
- Ball joint mounting type: Press in
- Ball joint stud type: Threaded
Build and materials
- Control arm material: Aluminum
- Bushings: Rubber, included
- Bearing material: Sintered metal
- Pre-greased and greaseable, grease fitting included
- Condition: New
- Country of origin: China
In the box
One control arm with ball joint, rubber bushings, a part-specific slotted castle nut, a snap cotter pin and a 135 degree SAE grease fitting. The front right side takes one; the front left is ordered separately.
Installation notes
- Secure the ball joint to the vehicle with the part-specific slotted castle nut and snap cotter pin provided.
- The ball joint comes pre-greased.
Interchange: 2703-537824 · 820-537824B · 527-058
19390883 · 4877158AD · 04877158AH · 4877158AC · 4877158AE · 4877158AF · 4877158AG · 4877158AH · CB82014 · CB82014PR · CA16511 · GCA16511 · RK623100 · 11CB252246
This part cross-references / interchanges with the following part numbers:
19390883, 2703-537824, 820-537824B, 4877158AD, 04877158AH, 4877158AC, 4877158AE, 4877158AF, 4877158AG, 4877158AH, 527-058, CB82014, CB82014PR, CA16511, GCA16511, RK623100, CTXMS251151, 11CB252246
Frequently Asked Questions
Does the Mevotech TTX CTXMS251151 work as a 2013-2018 Ram 1500 lower control arm?
Yes. Mevotech TTX CTXMS251151 is the front right lower control arm with ball joint for the 2013-2018 Ram 1500. The front left is a separate part.
Does this 2019-2024 Ram 1500 Classic control arm go on the front right side?
Yes. This listing is the front right lower arm for the 2019-2024 Ram 1500 Classic, sold one per listing.
Does the Mevotech TTX suspension control arm and ball joint assembly come with a castle nut and cotter pin?
Yes. Mevotech TTX CTXMS251151 includes the part-specific slotted castle nut, a snap cotter pin, rubber bushings and a 135 degree SAE grease fitting.
What material is the Mevotech TTX control arm made of?
The control arm is aluminum with rubber bushings. The bearings are sintered metal, and the ball joint has a threaded stud.
Is the ball joint on this front right lower control arm greaseable?
Yes. The ball joint comes pre-greased and has a 135 degree SAE grease fitting included, so it can be serviced with grease later.
