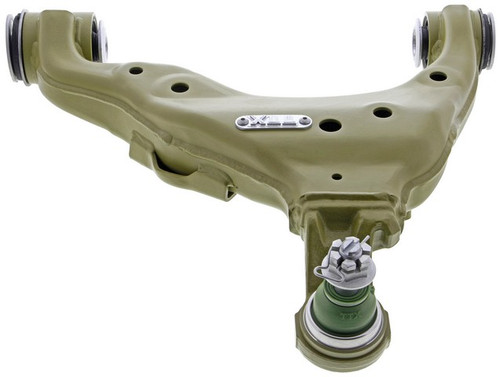

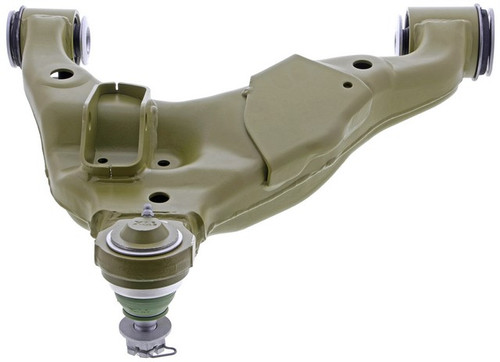

Mevotech TTX CTXMS861038 front left lower control arm with ball joint for the 2005-2015 Toyota Tacoma connects the front left wheel to the frame. This 2005-2015 Tacoma lower control arm includes the ball joint, rubber bushings and dust boot.
- Mevotech TTX control arm made for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks
- Patented sintered bearings for longer-lasting performance
- Integri-Boot design built into the ball joint locks out moisture and contaminants
- 180 degree SAE grease fitting included for servicing the greaseable ball joint
- Upgraded rubber bushings with knurling that secures the control arm bushing to the sub-frame
- Stamped steel construction with Repel-TEK surface treatment to prevent rust build-up
Quick facts
- Part: Mevotech TTX CTXMS861038 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2005-2015 Toyota Tacoma
- Position: Front left lower
- Material: Steel
- Condition: New
A clunk over bumps, uneven tire wear or loose-feeling steering can mean this arm, its bushings or its ball joint is worn, though a worn tie rod end or sway bar link can be behind them too. Both front lower arms are normally replaced together, and this listing is one arm, for the front left; the front right is ordered separately.
Fits
It is a direct-fit replacement for the 2005-2015 Toyota Tacoma, which takes one of these on the front left side.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1 (this side)
- Maximum width: 17.6 in
- Maximum length: 17.25 in
- Ball joint stud type: Threaded
Build and materials
- Control arm material: Steel, stamped steel construction
- Bushing material: Rubber
- Bearing material: Sintered metal
- Dust boot material: Neoprene
- Greaseable: Yes, pre-greased, with grease fitting included
- Surface treatment: Repel-TEK
- Condition: New
- Country of origin: China
In the box

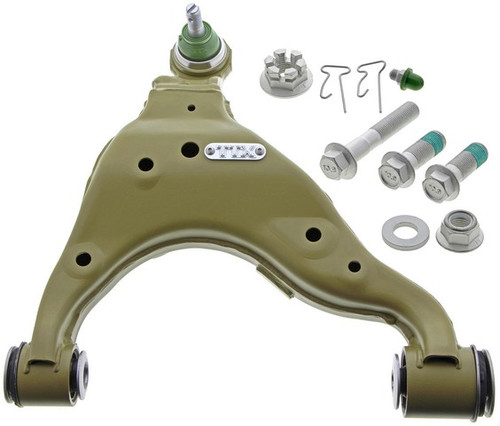

One control arm with ball joint, rubber bushings, dust boot, grease fitting, slotted castle nut and cotter pin.
Installation notes
- Secure the ball joint to the vehicle with the part-specific slotted castle nut and the snap cotter pin provided.
- The ball joint comes pre-greased.
- Labor Saver design, tools and hardware are meant to make installation faster and easier.
Interchange: 102-6431 · 810-84779B · 622.44064 · 622.44940 · 522-719
19474605 · TC5789 · CB74063 · CB74063PR · CA14635 · GCA14635 · CK623262 · RK621294 · RK623262 · 5072112 · X50CJ0517 · JTC2523 · 4806904040 · 4806904050 · TK621294
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
19474605, 102-6431, 810-84779B, 622.44064, 622.44940, TC5789, 522-719, CB74063, CB74063PR, CA14635, GCA14635, CK623262, RK621294, RK623262, CTXMS861038, 5072112, X50CJ0517, JTC2523, 4806904040, 4806904050, TK621294
Frequently Asked Questions
Is this one of the 2005-2015 Toyota Tacoma A arms for the front left?
Yes. Mevotech TTX CTXMS861038 is the front left lower control arm for the 2005-2015 Toyota Tacoma. The front right side is a separate part.
Does this control arm come with a castle nut and cotter pin?
Yes. This front left arm ships with a slotted castle nut and a snap cotter pin, plus the grease fitting, rubber bushings and neoprene dust boot.
Is the Mevotech TTX suspension control arm and ball joint assembly greaseable?
Yes. This Mevotech TTX CTXMS861038 ball joint comes pre-greased and includes a 180 degree SAE grease fitting for later servicing.
How do I know if a lower control arm's ball joint or bushings are worn?
A clunk over bumps, uneven tire wear or loose-feeling steering can point to wear. A shop can check the ball joint play and the condition of the bushings.
What materials is this lower control arm made from?
The control arm is stamped steel with rubber bushings, sintered metal bearings and a neoprene dust boot. Repel-TEK surface treatment is used to prevent rust build-up.
