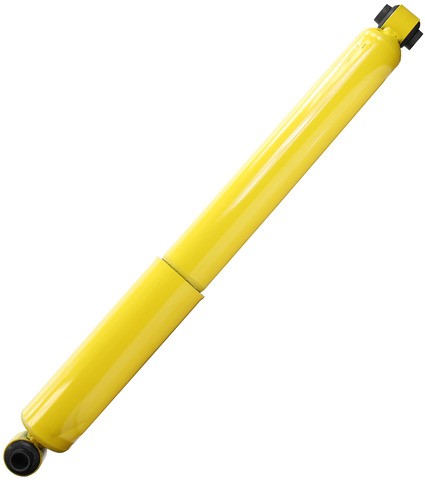

Monroe Shocks & Struts 65183 front shock absorber for the 2021-2024 Ford F-650 and other vehicles damps spring movement at the front axle. The Magnum line is the first gas-charged, large-bore shock for air spring and taper leaf suspensions.
- Monroe Magnum series for class 6-8 trucks and buses that see high mileage and severe use
- Nitrogen gas charge keeps tire-to-road contact by reducing aeration and shock fade
- All-weather fluid with additives that help with extreme temperatures and reduce oil breakdown
- Shouldered bushing and bonded bushing with sleeve protect against bushing walkout, with arc welds up to 360°
- Isolates impact-related noise, vibration and harshness under most driving conditions
Quick facts
- Part: Monroe Shocks & Struts 65183 shock absorber
- Fits: the 2021-2024 Ford F-650 and other vehicles
- Position: Front
- Condition: New
A bouncy ride, oil film running down the shock body or uneven tire wear can mean a front shock is worn. Those signs can have other causes, so with the engine off and the truck parked, look over the body and rod for oil and the loop bushings for cracks before you replace anything.
Fits
This shock absorber fits the 2021-2024 Ford F-650 and F-750, and the 2016-2019 Ford F-650 and F-750. Each truck takes two, one on each side of the front axle. This listing is a single shock, and the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 2
- Compressed length: 17.14 in (435.4 mm)
- Extended length: 26.45 in (671.8 mm)
- Travel length: 9.31 in
- Body diameter: 2.381 in (60.5 mm)
- Bore size: 1.75 in (44.5 mm)
- Shaft diameter: 18 mm
Build and materials
- Construction: twin tube, gas charged
- Upper mount: loop bushing and sleeve (3/4 sleeve ID x 2.1/4 sleeve OAL)
- Lower mount: loop (eyelet) bushing and sleeve (3/4 sleeve ID x 2.1/4 sleeve OAL)
- Finish: painted
- Dust shield: included
- Condition: new
- Warranty: Monroe limited commercial warranty
- Country of origin: China
In the box
One shock absorber with its dust shield. Mounting hardware is not included, so plan on new hardware, since the old pieces may not be reusable.
Interchange: HD12150148 · FC4418045AB · FC4418045BB · FC4Z18124A · FC4Z18124B · 85181 · 5001036 · ASH24658 · ASH24659 · 471700011530
This part cross-references / interchanges with the following part numbers:
HD12150148, FC4418045AB, FC4418045BB, FC4Z18124A, FC4Z18124B, 85181, 5001036, ASH24658, ASH24659, 65183, 471700011530
Frequently Asked Questions
Is the Monroe Shocks & Struts 65183 front shock absorber right for a 2021-2024 Ford F-750?
Yes. Monroe Shocks & Struts 65183 is a front shock absorber for the 2021-2024 Ford F-750, and it also fits the 2021-2024 Ford F-650.
Does the Monroe Magnum 65183 shock absorber come with mounting hardware?
No. This front shock absorber comes with its dust shield, but mounting hardware is not included, so have new hardware ready.
What are the compressed and extended lengths of the Monroe 65183 shock?
Monroe Shocks & Struts 65183 measures 17.14 in (435.4 mm) compressed and 26.45 in (671.8 mm) extended, with 9.31 in of travel.
How can I tell if a heavy-duty front shock is worn out?
A bouncy ride, oil film on the shock body or cracked loop bushings can mean it is worn. A shop can confirm the cause and replace the shock if needed.
Is this Monroe Magnum shock gas-charged, and what size is its bore?
Yes. This twin-tube shock absorber has a nitrogen gas charge that reduces aeration and shock fade, and its bore is 1.75 in (44.5 mm).
