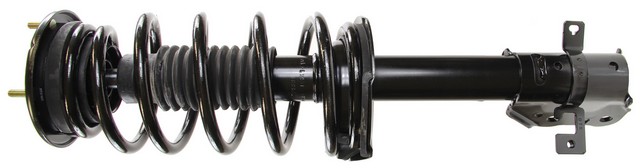

Monroe Shocks & Struts 172888 front right strut assembly for the 2007-2010 Ford Edge and other vehicles replaces the strut and spring as one unit. It is also called a complete strut and coil spring assembly.
- Quick-Strut unit with the strut, coil spring and upper strut mount preassembled; no spring compressor needed
- Vehicle-specific strut, spring and mount design that is fit checked and ride tested
- Application-specific coil spring calibrated to restore ride height and support the vehicle's weight
- Strut that reduces body sway, vibration and road harshness before it reaches the cabin
- Upper strut mount that helps keep steering precise and limits noise, vibration, harshness and memory steer
- Protective coating that resists rust and corrosion, with salt spray testing
Quick facts
- Part: Monroe Shocks & Struts 172888 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2007-2010 Ford Edge and other vehicles
- Position: Front right
- Condition: New
A worn strut assembly can show up as a bouncy ride, nose dive when braking or a clunk over bumps. Those signs alone do not prove the strut is the problem, since worn tires can feel much the same.
Fits
This strut assembly fits the 2007-2010 Ford Edge and the 2007-2010 Lincoln MKX. This listing is one strut for the front right; the front left is a separate part, with one on each side of the axle, and the pair is normally replaced at the same time.
Specifications
Fit and size
- Position: front right
- Quantity: one per side of the front axle
- Body length: 16.52 in
- Compressed length: 17.02 in (432.3 mm)
- Extended length: 24.13 in (612.9 mm)
- Travel length: 7.11 in
Build and materials
- Type: gas-charged, passive suspension
- Ride height and compression: not adjustable
- Condition: new
- Warranty: Monroe limited lifetime warranty
- Country of origin: China
In the box
One strut assembly with the coil spring, upper strut mount, strut mount insulator and coil spring insulator, plus mounting hardware.
Interchange: LS5390031R · 33FD1173
This part cross-references / interchanges with the following part numbers:
LS5390031R, 33FD1173, 172888
Frequently Asked Questions
Is the Monroe 172888 strut assembly right for the 2007-2010 Lincoln MKX?
Yes. Monroe Shocks & Struts 172888 fits the 2007-2010 Lincoln MKX and the 2007-2010 Ford Edge, in the front right position.
Does the Monroe 172888 front right strut come with the coil spring and upper mount?
Yes. The coil spring, upper strut mount, strut mount insulator and coil spring insulator are included, along with mounting hardware.
Do I need a spring compressor to install this Quick-Strut?
No. Monroe Shocks & Struts 172888 arrives as a single, fully assembled unit, so no spring compressor is needed.
Is this front right strut gas charged, and how long is it?
Yes. This strut assembly is gas charged, with a 7.11 in travel length, 17.02 in compressed length and 24.13 in extended length.
Is 33FD1173 an interchange number for this Monroe strut?
Yes. 33FD1173 is listed as an interchange number for the Monroe Shocks & Struts 172888 strut assembly, along with LS5390031R.
