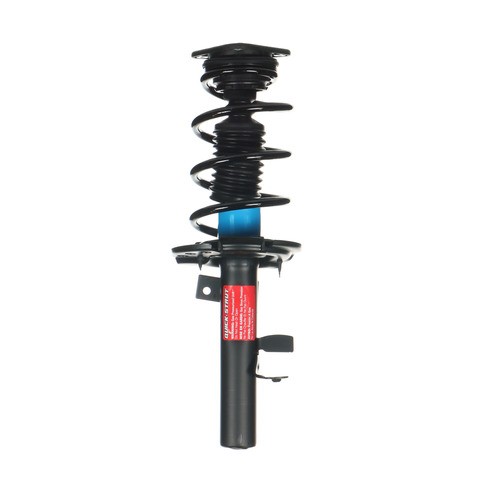

Monroe 172907 front right strut assembly for the 2013-2018 Ford Focus is a Monroe Quick-Strut unit that comes fully assembled. Also called a complete strut and coil spring assembly, it combines the strut, coil spring and upper mount in one piece.
- Monroe Quick-Strut line with vehicle-specific spring, mount and strut designs, fit checked and ride tested
- Coil spring calibrated to restore ride height and support the vehicle's weight
- Reduces body sway, vibration and road harshness before it reaches the passenger cabin
- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion, and the finish is salt spray tested
- Steel construction with an upper tube and welded design for structural integrity
Quick facts
- Part: Monroe 172907 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2013-2018 Ford Focus
- Position: Front right
- Material: Steel
- Condition: New
Bounce after bumps, body sway or an oily film on the strut body can mean a worn strut. With the engine off, look for oil on the body and cracks in the spring before replacing it, since tires and other suspension parts can also cause bounce. Front struts are normally replaced in pairs; this listing is one strut for the front right, and the front axle takes one on each side.
Fits
This Monroe quick strut assembly is a direct-fit replacement for the 2013-2018 Ford Focus.
Specifications
Fit and size
- Position: front right
- Quantity per application: 1
- Compressed length: 11.2 in (284.5 mm)
- Extended length: 17.9 in (454.7 mm)
- Travel length: 6.7 in
- Body length: 13.267 in
Build and materials
- Type: gas charged, passive
- Adjustable compression and ride height: no
- Material: steel
- Coating: protective rust-resistant coating
- Condition: new
- Warranty: Monroe limited lifetime warranty
- Country of origin: China
In the box
One front right strut assembly with the coil spring, upper strut mount, coil spring insulator, strut mount insulator and mounting hardware included.
Installation notes
- The strut, coil spring and upper strut mount come fully assembled, so no spring compressor is needed.
- All the components needed for the strut replacement are in the single unit, which simplifies installation.
Interchange: 2701651650 · 18818909 · 18920246 · 18920316 · LS3485521R · LS3485531R · 1335893R · 2335877R · 2335893R · BV6Z18124E · BV6Z18124F · BV6Z18124G · CV6Z18124Z · G57725 · 33FD1141 · 714290 · NS172907 · PM7000707 · 818909 · 92140412 · SCA72162 · 11086 · 78A11086
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
2701651650, 18818909, 18920246, 18920316, LS3485521R, LS3485531R, 1335893R, 2335877R, 2335893R, BV6Z18124E, BV6Z18124F, BV6Z18124G, CV6Z18124Z, G57725, 33FD1141, 714290, 172907, NS172907, PM7000707, 818909, 92140412, SCA72162, 11086, 78A11086
Frequently Asked Questions
Is the Monroe 172907 front right strut assembly right for the 2013-2018 Ford Focus?
Yes, Monroe 172907 is the front right strut assembly for the 2013-2018 Ford Focus; the front left side is a separate part.
What is included in this Monroe Quick-Strut strut and coil spring assembly?
The strut, coil spring, upper strut mount, coil spring insulator and strut mount insulator come as one unit, with mounting hardware included.
Is this Monroe complete strut assembly gas charged?
Yes, Monroe 172907 is gas charged and passive, with no adjustable compression or ride height, and it measures 11.2 in (284.5 mm) compressed and 17.9 in (454.7 mm) extended.
What does a worn Monroe strut assembly feel like?
Noise or vibration from the front right over bumps, or uneven tire wear, can be signs of a worn strut or mount. A shop can pinpoint which part is at fault.
Does Monroe 172907 replace number BV6Z18124E?
Yes, BV6Z18124E is one of the other numbers this Monroe 172907 front right strut assembly replaces, and it is printed on the Interchange line.
