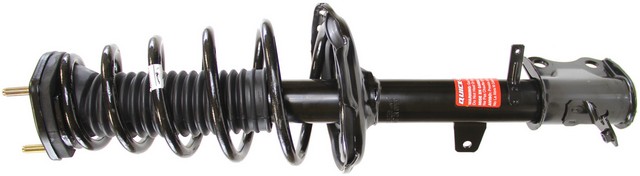

Monroe 172490 rear left strut assembly for the 2010-2011 Toyota Highlander and other vehicles replaces the strut, coil spring and upper mount in one unit. The Monroe quick strut assembly, also called a complete strut and coil spring assembly, comes fully assembled.
- Quick-Strut line: each assembly is fit checked and ride tested
- Application-specific coil spring, mount and strut designed to restore ride height and support the vehicle's weight
- Helps reduce body sway, vibration and road harshness for improved handling
- Upper strut mount helps keep steering precise and helps prevent noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion and is salt spray tested
Quick facts
- Part: Monroe 172490 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2010-2011 Toyota Highlander and other vehicles
- Position: Rear left
- Condition: New
A worn rear left strut can show up as a bouncy ride, clunking over bumps or fluid on the strut body. Those signs alone do not prove the strut is the problem; a worn sway bar link can cause a similar clunk.
Fits
This strut assembly fits the 2010-2011 Toyota Highlander and the 2013-2015 Toyota Venza, and either one takes a single strut on the rear left. The rear right is ordered separately, and both sides are normally replaced together.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Compressed length: 17.421 in (442.5 mm)
- Extended length: 24.547 in (623.5 mm)
- Travel length: 7.126 in
- Upper mount code: 181
Build and materials
- Condition: New
- Gas charged: Yes
- Suspension type: Passive; compression and ride height are not adjustable
- Warranty: Monroe Limited Lifetime Warranty
- Country of origin: China
In the box
One rear left strut assembly with its coil spring, upper strut mount, strut mount insulator, coil spring insulator and mounting hardware.
Installation notes
- No spring compressor is needed.
- All components needed for the strut replacement are in the single unit.
Interchange: LS5494552L · 34TY1237 · 92140923
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
LS5494552L, 34TY1237, 92140923
Frequently Asked Questions
Is this a strut replacement for the 2010-2011 Toyota Highlander?
Yes. Monroe 172490 is a rear left strut assembly for the 2010-2011 Toyota Highlander and the 2013-2015 Toyota Venza.
What comes with the Monroe quick strut 172490 besides the strut?
The coil spring, upper strut mount, strut mount insulator and coil spring insulator come together as one assembled unit, and mounting hardware is included.
Is the Monroe complete strut assembly 172490 gas charged?
Yes. Monroe 172490 is gas charged, with a compressed length of 17.421 in (442.5 mm) and an extended length of 24.547 in (623.5 mm).
Does Monroe back this strut assembly with a warranty?
Yes. Monroe 172490 comes with Monroe's Limited Lifetime Warranty and its Feel the Difference Guarantee.
Does a Monroe strut assembly like this one need a spring compressor?
No. The spring comes assembled on the strut with the mount, so this rear left strut assembly goes in without a spring compressor.
