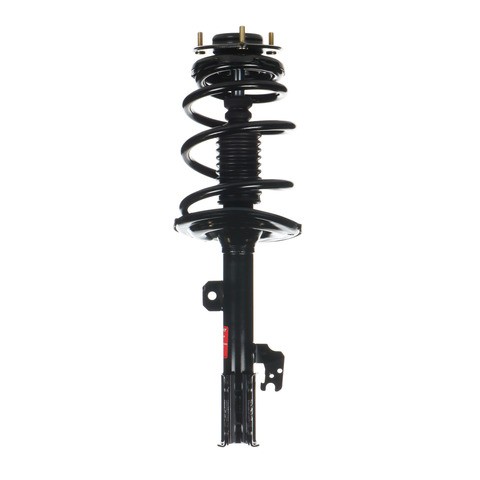

Monroe Shocks & Struts 172962 front right strut assembly for the 2009-2012 Toyota Venza damps body motion and carries the spring load at that corner. It is a complete strut and coil spring assembly with the spring and upper mount already fitted.
- Monroe Quick-Strut line: vehicle-specific design, fit checked and ride tested

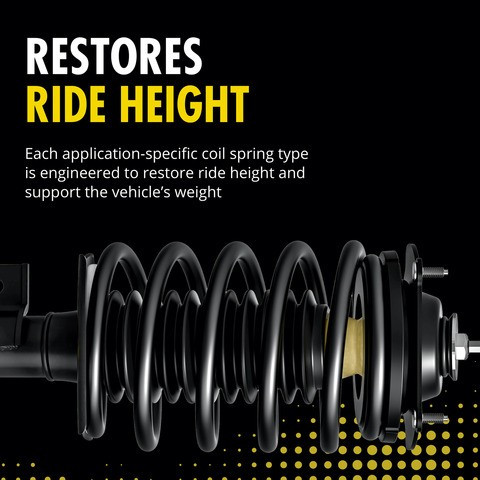

- Application-specific coil spring engineered to restore ride height and support the vehicle's weight
- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Reduces body sway and road harshness before it reaches the passenger cabin
- Protective coating resists rust and corrosion, and the part is salt spray tested
Quick facts
- Part: Monroe Shocks & Struts 172962 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2009-2012 Toyota Venza
- Position: Front right
- Condition: New
A bouncy ride, a clunk over bumps or oil on the strut body can mean the strut is worn. Sway bar links, control arm bushings, ball joints and tires can be behind these signs too, so find the cause before buying.
Fits
It fits the 2009-2012 Toyota Venza. This listing is one assembly for the front right; the front left side of that axle is a separate part, and the two are normally replaced together.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Body length: 16.673 in
- Compressed length: 15.96 in (405.4 mm)
- Extended length: 23.28 in (591.3 mm)
- Travel length: 7.32 in
Build and materials
- Type: gas-charged strut, passive suspension
- Adjustable compression: No
- Adjustable ride height: No
- Condition: New
- Warranty: Monroe Limited Lifetime Warranty
- Country of origin: Viet Nam
In the box
One strut assembly with the coil spring, strut mount, coil spring insulator, strut mount insulator and mounting hardware.
Installation notes
- Fully assembled, so no spring compressor is needed for strut replacement.
Interchange: 18810415 · LS5494701R · 1333432R · 1333433R · 1333434R · G57677 · SR4439 · 34TY1240 · LS57677 · NS172962 · 92140962 · 48510A9760
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
18810415, LS5494701R, 1333432R, 1333433R, 1333434R, G57677, SR4439, 34TY1240, LS57677, 172962, NS172962, 92140962, 48510A9760
Frequently Asked Questions
Does the Monroe Shocks & Struts 172962 fit the 2009-2012 Toyota Venza?
Yes. Monroe Shocks & Struts 172962 is a front right strut assembly for the 2009-2012 Toyota Venza. The front left is a separate part.
Does this strut assembly come with the coil spring and upper mount?
Yes. Monroe 172962 includes the coil spring, strut mount, coil spring insulator, strut mount insulator and mounting hardware in one unit.
How long is this strut assembly compressed and extended?
Compressed length is 15.96 in (405.4 mm) and extended length is 23.28 in (591.3 mm), with 7.32 in of travel.
How can I tell if the front right strut is wearing out?
A bouncy ride, a clunk over bumps or oil on the strut body can mean a worn strut. A shop can road-test the car to confirm.
Do I need a spring compressor to install the Monroe Quick-Strut 172962?
No. Monroe Quick-Strut 172962 comes fully assembled, so no spring compressor is needed for strut replacement.
