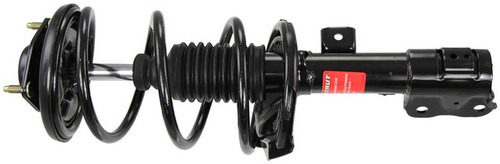

Monroe Shocks & Struts 173059 front strut assembly for the 2015-2024 Ford Edge and other vehicles combines the strut, coil spring and upper strut mount in one preassembled unit. The Quick-Strut design is vehicle-specific, fit checked and ride tested.
- Monroe Quick-Strut line with the strut, coil spring and upper strut mount preassembled
- Application-specific coil spring engineered to restore ride height and support the vehicle's weight
- Steel construction with a welded design for structural strength
- Reduces body sway, vibration and road harshness before they reach the cabin
- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion, and the part is salt spray tested
Quick facts
- Part: Monroe Shocks & Struts 173059 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2015-2024 Ford Edge and other vehicles
- Position: Front
- Material: Steel
- Condition: New
A worn strut can show up as oily fluid on the body, a bouncy ride or a clunk over bumps. A clunk alone does not prove the strut is at fault, since a worn sway bar link makes similar noises.
Fits
It fits the 2015-2024 Ford Edge and the 2019-2023 Lincoln Nautilus, and each takes two, one per front wheel. This listing is one assembly; the other side of the front axle is normally done at the same time.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 2
- Body length: 14.7 in
- Compressed length: 15.43 in (391.9 mm)
- Extended length: 22.35 in (567.7 mm)
- Travel length: 6.92 in
Build and materials
- Type: strut and coil spring assembly, passive suspension
- Material: steel
- Gas charged: yes
- Adjustable compression and ride height: no
- Condition: new
- Assembled in: Paragould, Arkansas
- Warranty: Monroe limited lifetime warranty
In the box
One strut assembly with the coil spring, upper strut mount, coil spring insulator, strut mount insulator and mounting hardware.
Installation notes
- Arrives as a single, fully assembled unit with no need for a spring compressor.
Frequently Asked Questions
Does the Monroe Quick-Strut 173059 fit the 2019-2023 Lincoln Nautilus?
Yes. Monroe Shocks & Struts 173059 is a front strut assembly for the 2019-2023 Lincoln Nautilus, and the front axle takes two.
Does this strut come with the coil spring and upper mount?
Yes. This front strut assembly includes the coil spring, strut mount, coil spring and strut mount insulators, and mounting hardware in one unit.
How long is the Monroe 173059 compressed and extended?
Monroe 173059 measures 15.43 in (391.9 mm) compressed and 22.35 in (567.7 mm) extended, with 6.92 in of travel.
How can I tell if my complete strut and coil spring assembly is worn?
With the vehicle parked and the engine off, look for oily fluid on the strut body. A bouncy ride or a clunk over bumps can also be signs of wear.
Do I need a spring compressor to install this Quick-Strut assembly?
No. The strut, coil spring and upper mount come preassembled in one unit, so no spring compressor is needed.
